SPAL 7.5" (190mm) Cooling Fan VA14-BP7/C-34A (24v / 384 cfm / Pulling)

SPAL 7.5" (190mm) Cooling Fan VA14-BP7/C-34A (24v / 384 cfm / Pulling) SPAL 7.5" (190mm) Cooling Fan VA14-BP7/C-34A (24v / 384 cfm / Pulling)

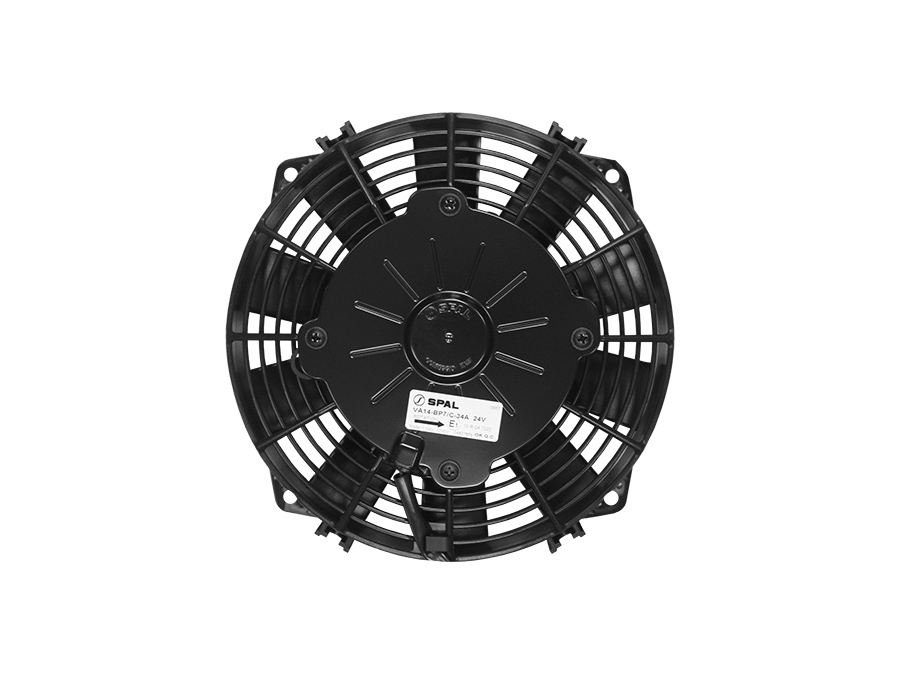

SPAL 7.5" (190mm) Cooling Fan VA14-BP7/C-34A (24v / 384 cfm / Pulling) - view 1
SPAL 7.5" (190mm) Cooling Fan VA14-BP7/C-34A (24v / 384 cfm / Pulling) - view 2
SPAL 7.5" (190mm) Cooling Fan VA14-BP7/C-34A (24v / 384 cfm / Pulling) - view 3

Part No. 30100342A

Low profile straight blade suction condenser/radiator cooling fan from SPAL Automotive.

  • SPAL TYPE:VA14-BP7/C-34A BT MC
  • 24v
  • Pulling (suction) for maximum efficency
  • Depth: 53mm
  • 384 CFM
  • 3A current draw
  • Metal Casing for additional ruggedness
  • Standard Connector with wire harness is included

  • View Product Details / Technical Specifications
  • View Related Items
£92.91 GBP each Inc VAT
(Show Ex. VAT)
Weight: 1.344kg
Add
In stock (for delivery only)
See product category 7.5" (190mm) Ø Fans for more

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 384CFM (650m³/h)
Fan Blade Ø 190mm (7.5")
Standard Features Waterproof motor, IP 68
Long life
36 Months Guarantee
Operating Voltage 24v (tested at:26v)
IP Rating IP68
SPAL Type/Description VA14-BP7/C-34A BT MC
BT: Standard Connector
/C: C Class 5000hr motor
MC: Metal Cover
Airflow Direction Suction
Mounting Bolt/Screw M5 bolt
Mounting Torque 3(+1/-0) Nm
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001

For additional technical details / dimensions please refer to catalogue pages

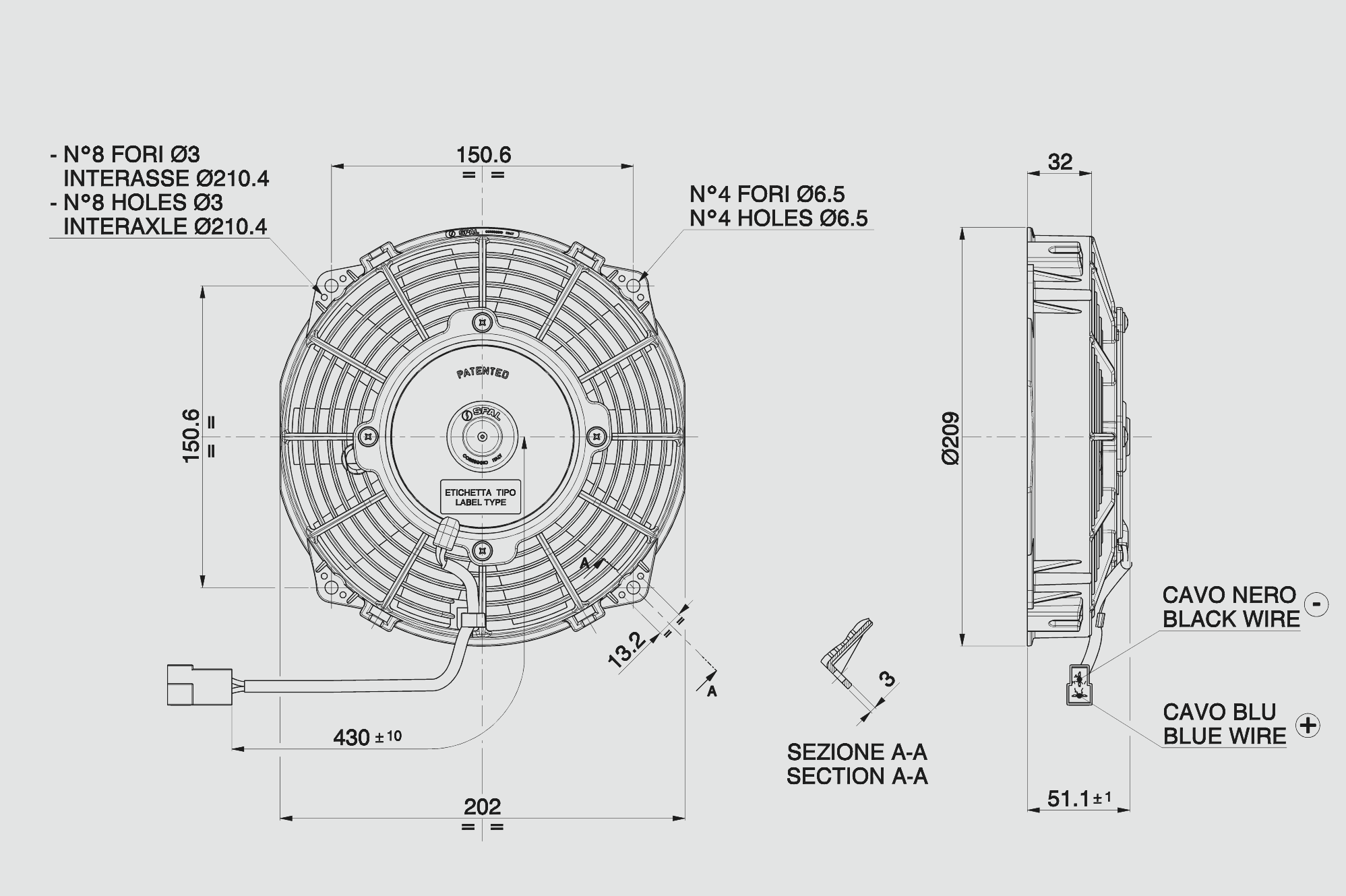

Technical Drawing

Dimensions of SPAL 7.5" (190mm) Cooling Fan VA14-BP7/C-34A (24v / 384 cfm / Pulling)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
650
2.4
384
0.0
2.5
610
2.5
360
0.1
5.0
570
2.5
336
0.2
7.5
520
2.6
307
0.3
10.0
460
2.6
271
0.4
12.5
390
2.6
230
0.5
15.0
320
2.6
189
0.6
17.5
280
2.7
165
0.7
20.0
220
2.8
130
0.8
25.0
160
2.8
94
1.0
30.0
0
3.0
0
1.2

Catalogue Pages

SPAL Axial Fans 12v - 24v DC
Catalogue-FA55
213
