SPAL 6.5" (167mm) Cooling Fan VA68-A101-83A 12V SUMIT (12v / 314 cfm / Pulling)

SPAL 6.5" (167mm) Cooling Fan VA68-A101-83A 12V SUMIT (12v / 314 cfm / Pulling) SPAL 6.5" (167mm) Cooling Fan VA68-A101-83A 12V SUMIT (12v / 314 cfm / Pulling)

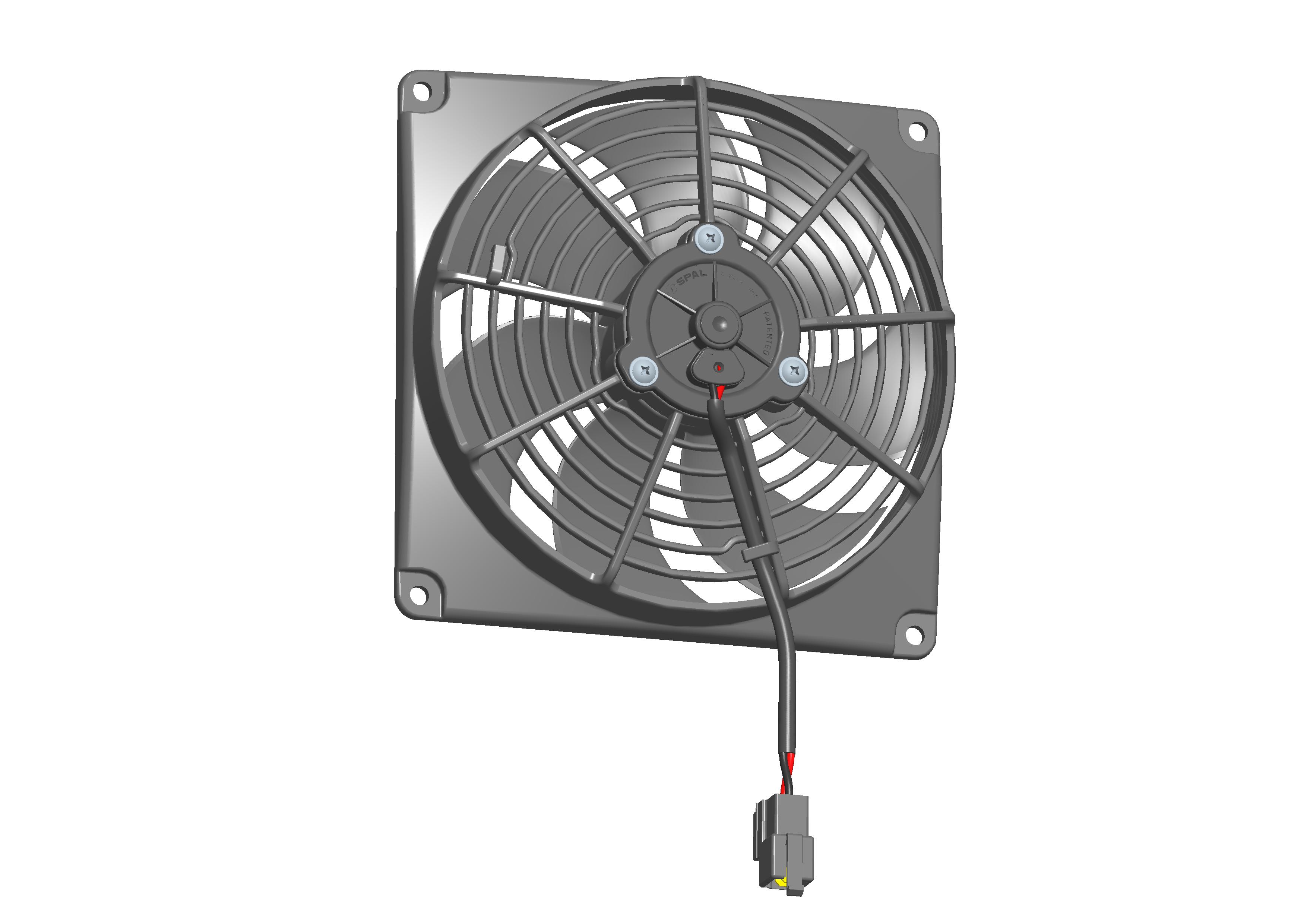

SPAL 6.5" (167mm) Cooling Fan VA68-A101-83A 12V SUMIT (12v / 314 cfm / Pulling) - view 1
SPAL 6.5" (167mm) Cooling Fan VA68-A101-83A 12V SUMIT (12v / 314 cfm / Pulling) - view 2

Part No. 30103061

  • SPAL TYPE:VA68-A101-83A 12V SUMIT
  • 12v
  • Pulling (suction) for maximum efficency
  • Depth:58.1mm
  • 314 CFM
  • 4A current draw
  • SUMIT Connector

  • View Product Details / Technical Specifications
  • Related items: None
£70.21 GBP each Inc VAT
(Show Ex. VAT)
Weight: 0.8kg
Add
In stock (for delivery only)
Find more 6.5" (167mm) Ø Fans

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 314CFM (530m³/h)
Fan Blade Ø 167mm (6.5")
Operating Voltage 12v
SPAL Type/Description VA68-A101-83A 12V SUMIT
SUMIT: SUMIT Connector
Airflow Direction Suction (Pulling Fan)
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001

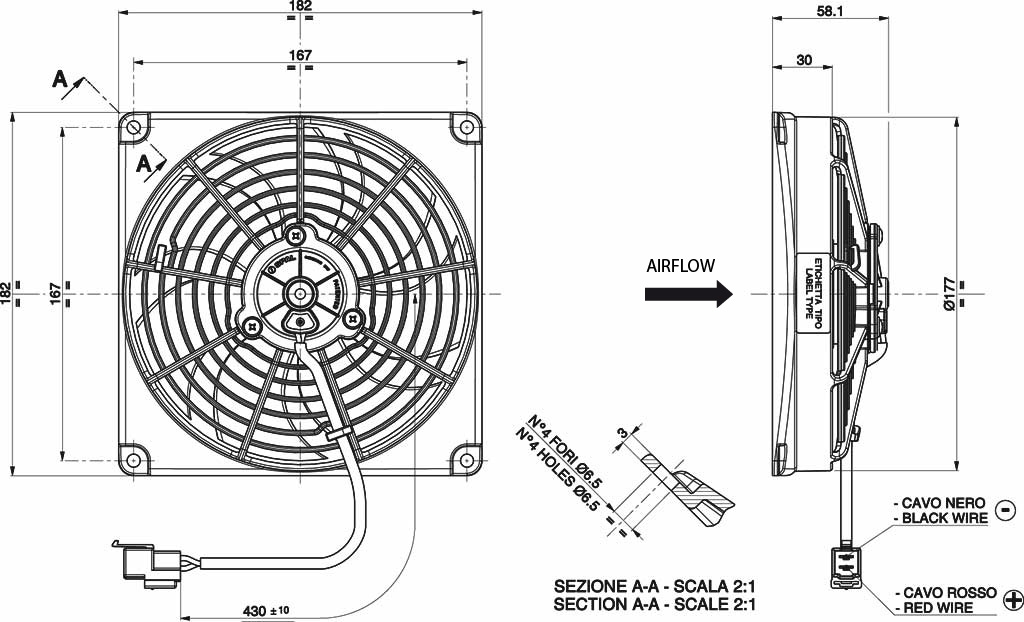

Technical Drawing

Dimensions of SPAL 6.5" (167mm) Cooling Fan VA68-A101-83A 12V SUMIT (12v / 314 cfm / Pulling)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
533
4.0
314
0.0
5.0
470
4.1
277
0.2
10.0
410
4.3
242
0.4
15.0
358
4.6
211
0.6
20.0
285
4.9
168
0.8
25.0
191
5.4
113
1.0
30.0
112
5.7
66
1.2
35.0
50
6.0
30
1.4
40.0
0
6.1
0
1.6
