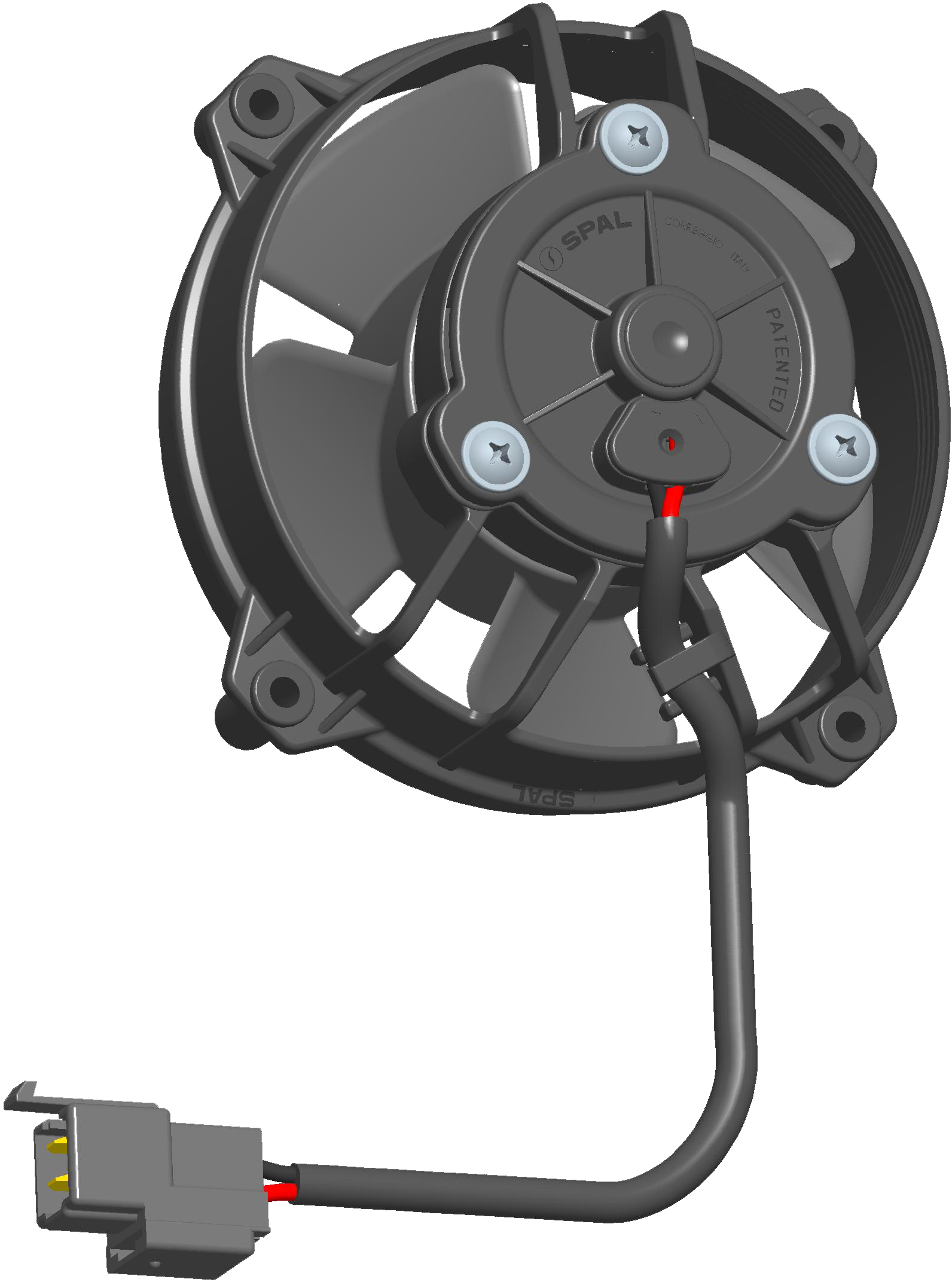

SPAL 4" (96mm) Cooling Fan VA32-A101-62A 12V AMP S1.5 (12v / 148 cfm / Pulling)
Part No. 30103006
- SPAL TYPE:VA32-A101-62A 12V AMP S1.5
- 12v
- Pulling (suction) for maximum efficency
- Depth:58.1mm
- 148 CFM
- 3.4A current draw
- AMP S1.5 connector type
- View Product Details / Technical Specifications
- No application data available / applicable
- Related items: None
Weight:
0.6kg
Shipping costs are not available for this item
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
148CFM (250m³/h) |
| Fan Blade Ø |
96mm (4") |
| Operating Voltage |
12v |
| SPAL Type/Description |
VA32-A101-62A 12V AMP S1.5 |
|
AMP S1.5: AMP S1.5 connector type |
|
|
| Airflow Direction |
Suction (Pulling Fan) |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |

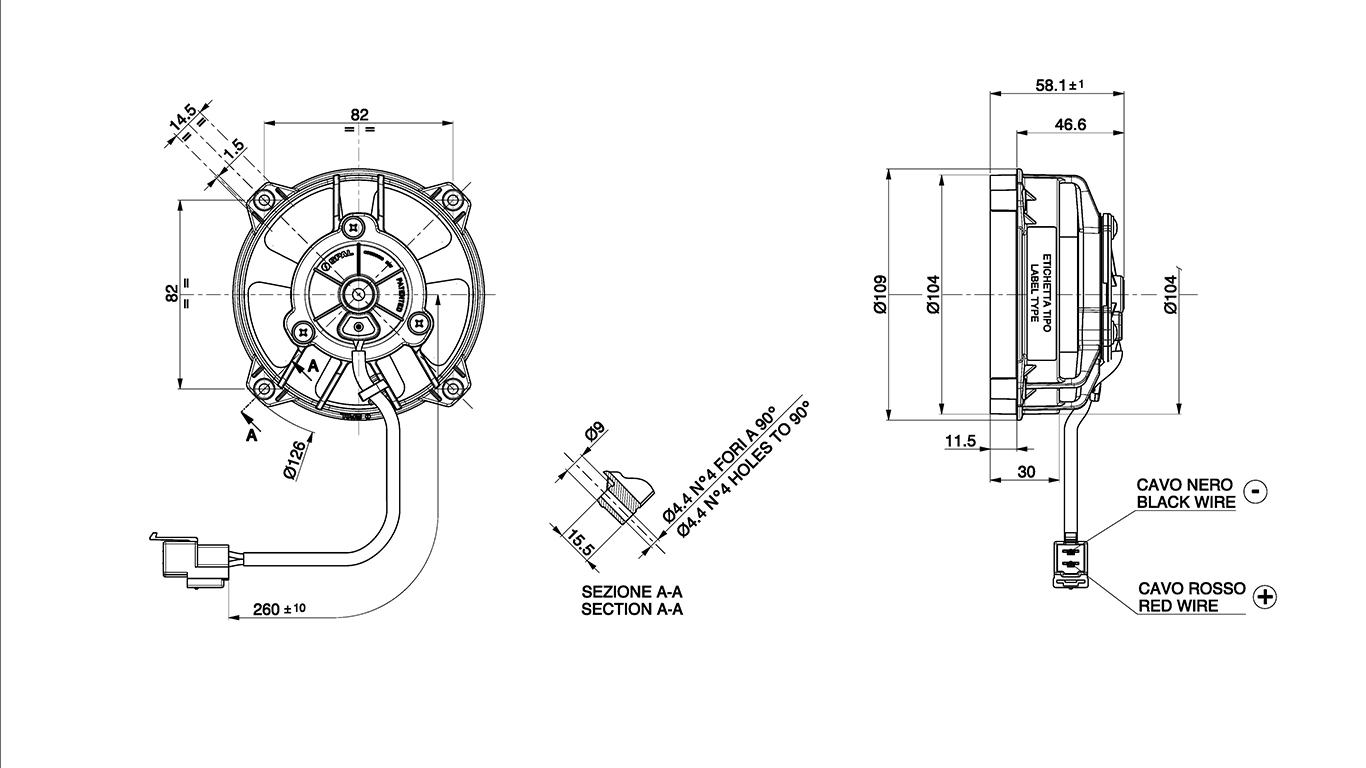

Technical Drawing
Performance Table
