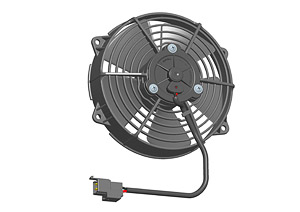

SPAL 5.5" (140mm) Cooling Fan VA39-B100-45A 24V AMP S1.5 (24v / 295 cfm / Pulling)
Part No. 30103500
- SPAL TYPE:VA39-B100-45A 24V AMP S1.5
- 24v
- Pulling (suction) for maximum efficency
- Depth:58.1mm
- 295 CFM
- 2.2A current draw
- AMP S1.5 connector type
- View Product Details / Technical Specifications
- No application data available / applicable
- Related items: None
Weight:
1.2kg
Shipping costs are not available for this item
You might also be interested in other
24v SPAL Radiator/Condenser Fans items
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
295CFM (500m³/h) |
| Fan Blade Ø |
140mm (5.5") |
| Operating Voltage |
24v |
| SPAL Type/Description |
VA39-B100-45A 24V AMP S1.5 |
|
AMP S1.5: AMP S1.5 connector type |
|
|
| Airflow Direction |
Suction (Pulling Fan) |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |

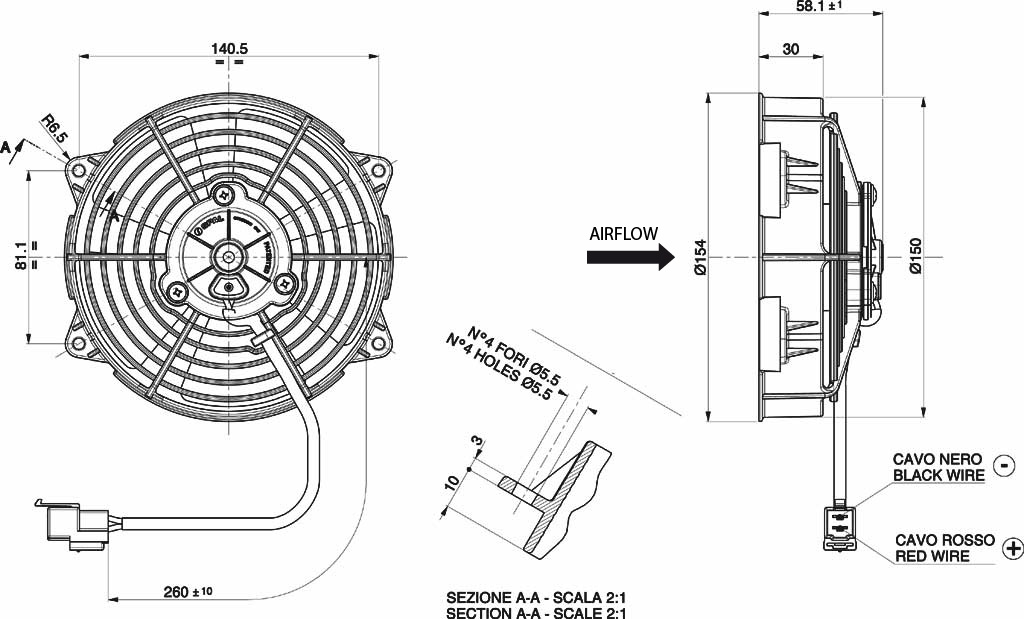

Technical Drawing
Performance Table
Products described as suitable for original manufacturers on this site are SPAL branded replacement parts and are not manufactured by the Original Equipment Manufacturer (OEM). Original Manufacturer’s names, part numbers and descriptions are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OEM. All SPAL products sold on this website are genuine SPAL Automotive products manufactured in Italy.
