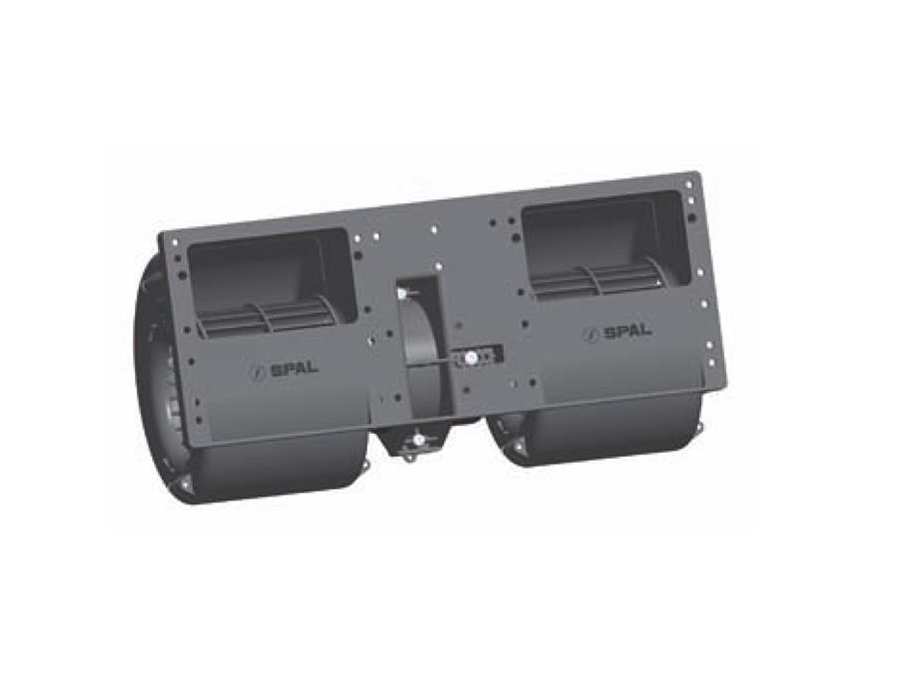

SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed)

SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed)
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 1
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 2
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 3
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 4
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 5
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 6
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 7
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 8
SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed) - view 9

Part No. 30000076

SPAL TYPE:006-B39-22

  • 24v
  • Double Blower Wheel
  • 708 CFM
  • 16A current draw
  • Standard Connector Wire Harness Included

  • View Product Details / Technical Specifications
  • View Related Items
£124.65 GBP each Inc VAT
(Show Ex. VAT)
Weight: 3.156kg
Add
In stock (for delivery only)
This 24v Double Blower Motor Assemblies is another genuine SPAL product from performanceairflow.co.uk

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 708CFM (1200m³/h)
Standard Features Long life
36 Months Guarantee
Operating Voltage 24v (tested at:26v)
IP Rating IP30
SPAL Type/Description 006-B39-22
Mounting Bolt/Screw M4 screw
Mounting Torque 3(+1/-0) Nm
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001

For additional technical details / dimensions please refer to catalogue pages

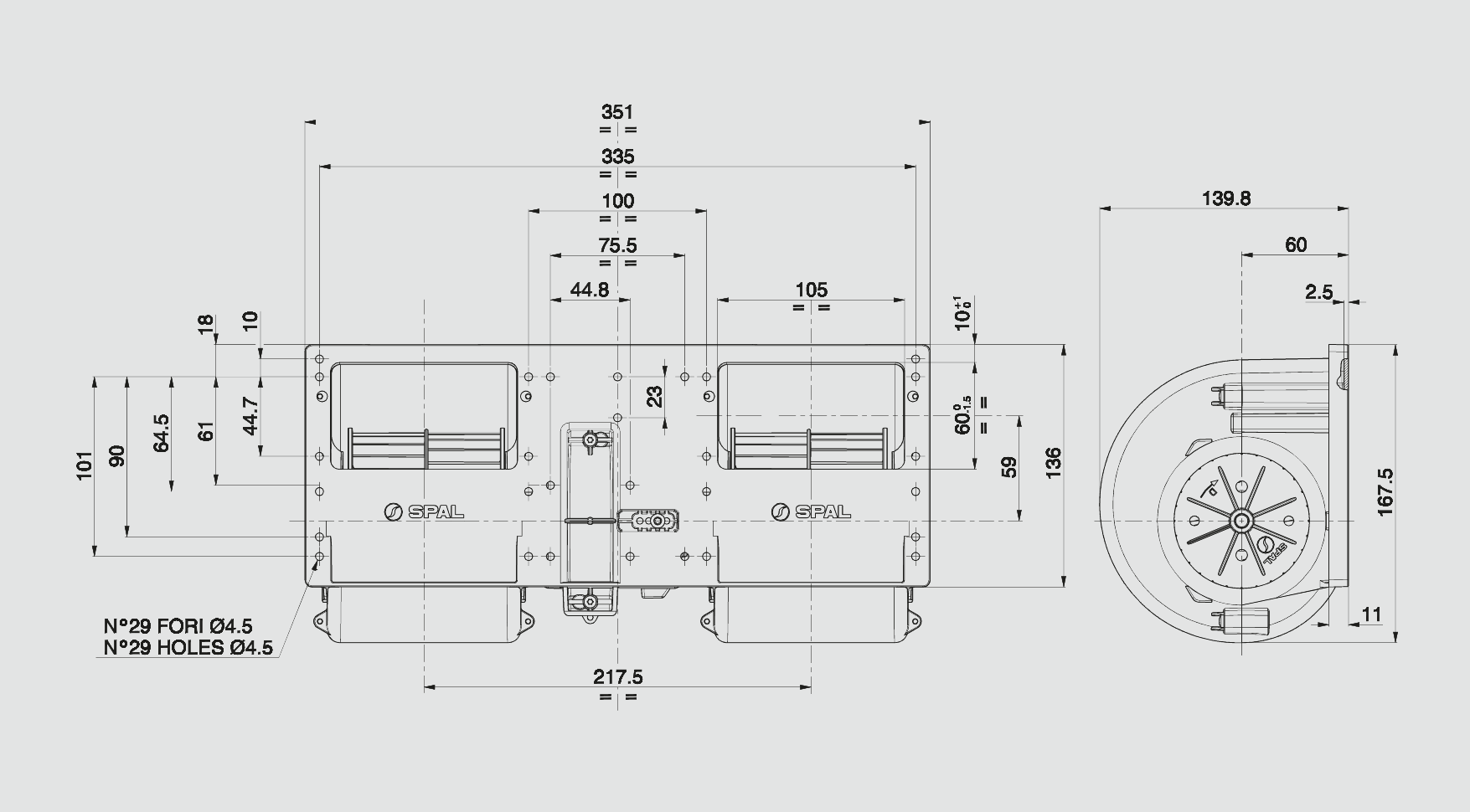

Technical Drawing

Dimensions of SPAL 708 cfm Double Blower 006-B39-22 (24v) (Single Speed)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
1200
16.0
708
0.0
10.0
1100
14.5
649
0.4
20.0
1030
13.8
608
0.8
30.0
940
12.7
555
1.2
40.0
840
12.2
496
1.6
50.0
730
11.1
431
2.0
60.0
620
10.1
366
2.4
70.0
350
7.4
207
2.8
80.0
180
6.5
106
3.2
90.0
0
5.9
0
3.6

Catalogue Pages

Centrifugal Blowers 12v - 24v DC
24v Double Blowers
128
