SPAL 631 cfm Double Blower 009-B40-22 (24v) (Single Speed)

SPAL 631 cfm Double Blower 009-B40-22 (24v) (Single Speed) SPAL 631 cfm Double Blower 009-B40-22 (24v) (Single Speed)

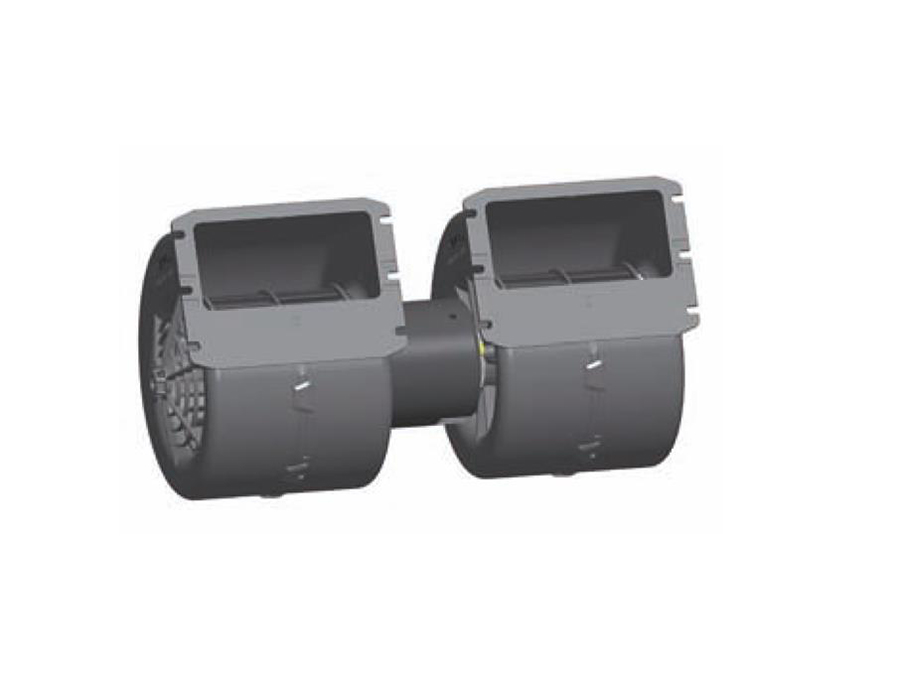

SPAL 631 cfm Double Blower 009-B40-22 (24v) (Single Speed) - view 1
SPAL 631 cfm Double Blower 009-B40-22 (24v) (Single Speed) - view 2
SPAL 631 cfm Double Blower 009-B40-22 (24v) (Single Speed) - view 3

Part No. 30000506

SPAL TYPE:009-B40-22 GR

  • 24v
  • Double Blower Wheel
  • 631 CFM
  • 11A current draw
  • Includes Grid
  • Standard Connector Wire Harness Included

  • View Product Details / Technical Specifications
  • View Related Items
£124.65 GBP each Inc VAT
(Show Ex. VAT)
Weight: 2.904kg
Add
In stock (for delivery only)
This 24v Double Blower Motor Assemblies is another genuine SPAL product from performanceairflow.co.uk

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 631CFM (1070m³/h)
Standard Features Long life
Low noise
36 Months Guarantee
Operating Voltage 24v (tested at:26v)
IP Rating IP30
SPAL Type/Description 009-B40-22 GR
GR: Grid
Mounting Bolt/Screw M4 screw
Mounting Torque 3(+1/-0) Nm
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001
Notes For mounting use wide-head screw or washer to fasten the unit

For additional technical details / dimensions please refer to catalogue pages

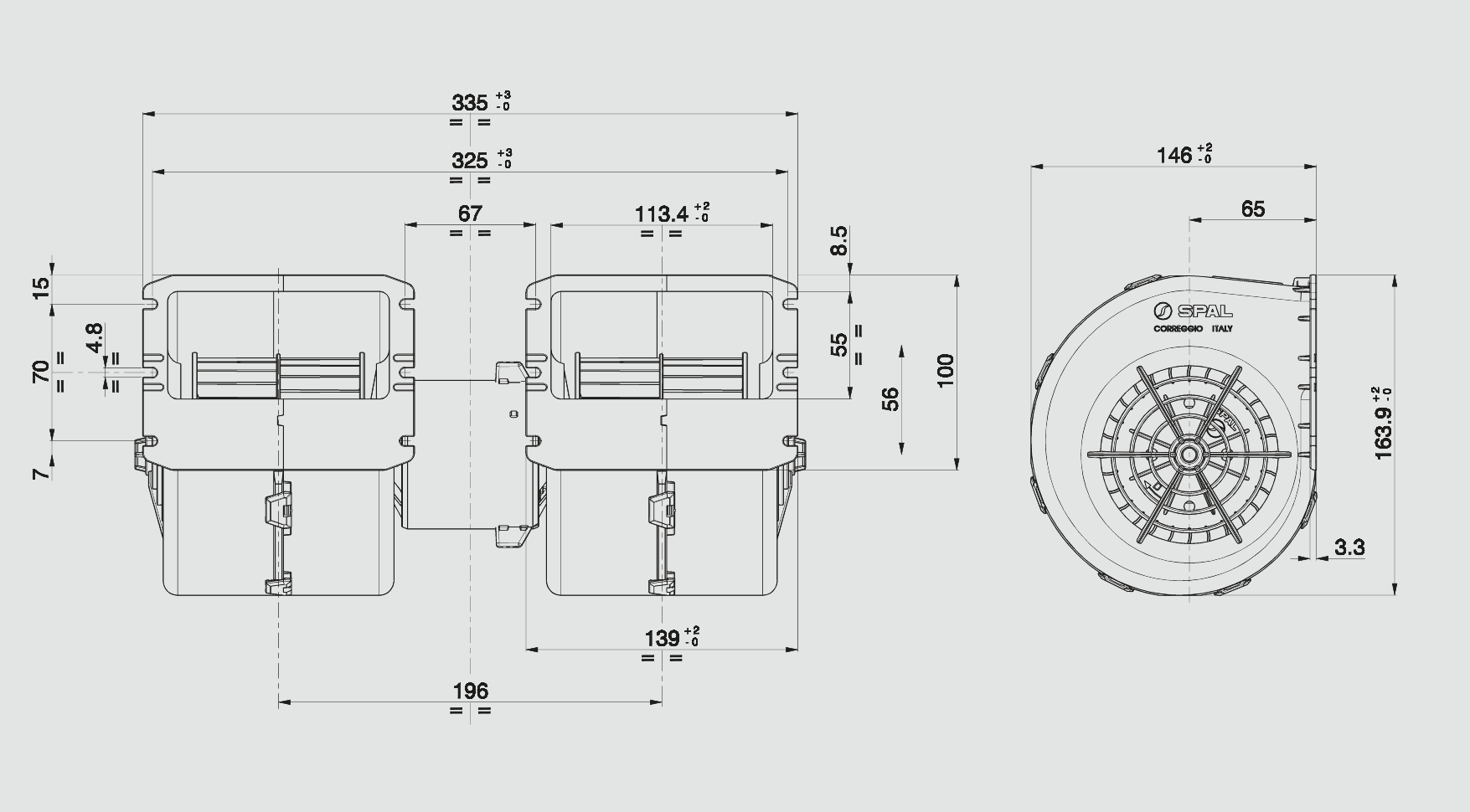

Technical Drawing

Dimensions of SPAL 631 cfm Double Blower 009-B40-22 (24v) (Single Speed)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
1070
11.0
631
0.0
5.0
1020
10.6
602
0.2
10.0
980
10.2
578
0.4
15.0
930
9.9
549
0.6
20.0
870
9.5
513
0.8
25.0
820
9.2
484
1.0
30.0
770
8.8
454
1.2
35.0
710
8.4
419
1.4
40.0
650
8.0
384
1.6
45.0
580
7.5
342
1.8
50.0
470
6.7
277
2.0
55.0
230
5.4
136
2.2
65.0
0
4.6
0
2.6

Catalogue Pages

Centrifugal Blowers 12v - 24v DC
24v Double Blowers
114
