SPAL 443 cfm Double Blower 008-B45-02 (24v / 3 speeds)
Part No. 30000464
SPAL TYPE:008-B45-02 GR RA3VCV
- 24v
- Double Blower Wheel
- 443 CFM
- 8.2A current draw
- 3 Speeds (Aluminium resistor supplied)
- Includes Grid
- Jumper between electric motor and resistor (NO WIRE HARNESS SUPPLIED)
- View Product Details / Technical Specifications
- No application data available / applicable
- View Related Items
Weight:
2.508kg
Shipping costs are not available for this item
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
443CFM (750m³/h) |
| Standard Features |
Long life |
|
Low noise |
|
36 Months Guarantee |
| Operating Voltage |
24v (tested at:26v) |
| IP Rating |
IP30 |
| SPAL Type/Description |
008-B45-02 GR RA3VCV |
|
GR: Grid |
|
RA: Aluminium resistor |
|
3V: 3 speeds |
|
CV: Jumper between electric motor and resistor (without wire harness) |
| Mounting Bolt/Screw |
M4 screw |
| Mounting Torque |
3(+1/-0) Nm |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |
| Notes |
For mounting use wide-head screw or washer to fasten the unit |
For additional technical details / dimensions please refer to catalogue pages

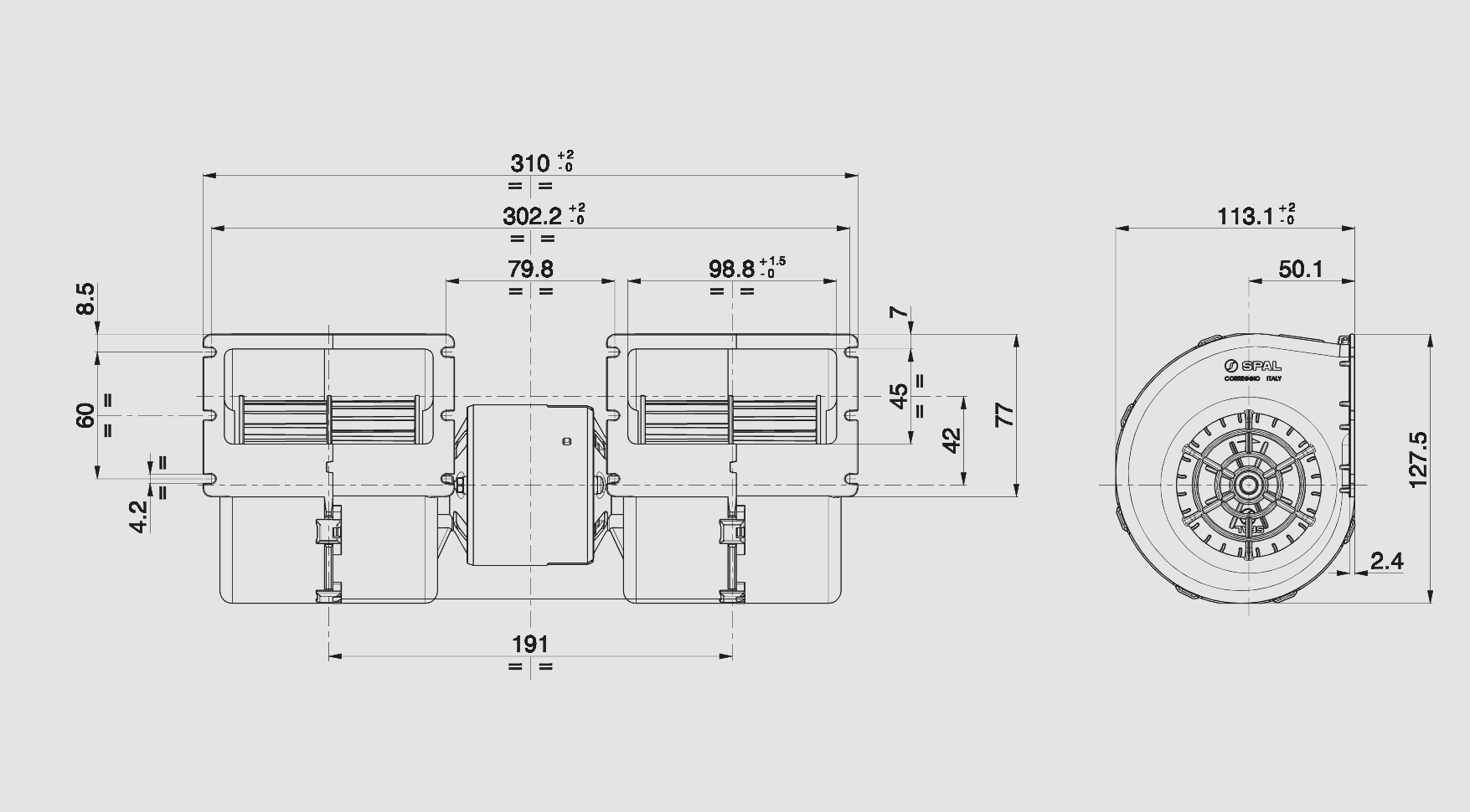

Technical Drawing
Wiring Guide for 3 Speed Resistors
A 3 speed resistor pack is included with this blower allowing it to be operated at low, medium and high speed settings. Please ensure the fan switch can handle the current draw at maximum power. For 3 speeds you will need a 4 position switch (low, medium, high, off) using wire size of at least 2.5mm²
3 Speed Resistor Wiring Diagram
|
SPAL 3 Speed Resistor Contacts
- Contact MOTOR should be connected to the +ve terminal on the blower motor with the other terminal on the motor leading to GROUND
- Contact 3+ on the resistor should be connected to the HIGH setting on the swtich (+ve supply)
- Contact 2+ on the resistor should be connected to the MEDIUM setting on the swtich (+ve supply)
- Contact 1+ on the resistor should be connected to the LOW setting on the swtich (+ve supply)
|
Performance Table
| Centrifugal Blowers 12v - 24v DC |
24v Double Blowers
|
