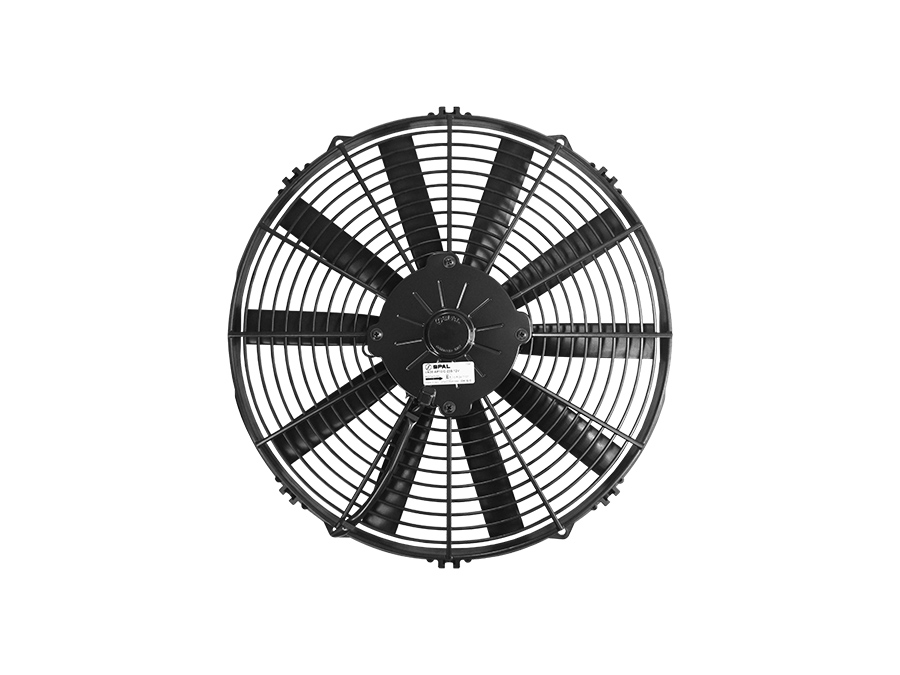

SPAL 14" (350mm) Cooling Fan VA08-AP10/C-23S (12v / 956 cfm / Pushing)
Part No. 30100382A
Super low profile high performance straight blade blowing condenser/radiator cooling fan from SPAL Automotive.
- SPAL TYPE:VA08-AP10/C-23S BTMC
- 12v
- Pushing (blowing) ideal for restricted spaces
- Depth: 53mm
- 956 CFM
- 5.5A current draw
- Metal Casing for additional ruggedness
- Standard Connector with wire harness is included
- View Product Details / Technical Specifications
- No application data available / applicable
- View Related Items
Weight:
1.752kg
Shipping costs are not available for this item
See product category
14" (350mm) Ø Fans for more
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
956CFM (1620m³/h) |
| Fan Blade Ø |
350mm (14") |
| Operating Voltage |
12v (tested at:13v) |
| IP Rating |
IP68 |
| SPAL Type/Description |
VA08-AP10/C-23S BTMC |
|
BT: Standard Connector |
|
/C: C Class 5000hr motor |
|
MC: Metal Cover |
| Airflow Direction |
Blowing |
| Mounting Bolt/Screw |
M5 bolt |
| Mounting Torque |
3(+1/-0) Nm |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |
| Notes |
Cable length measured with free wires, without zip ties or hooks |

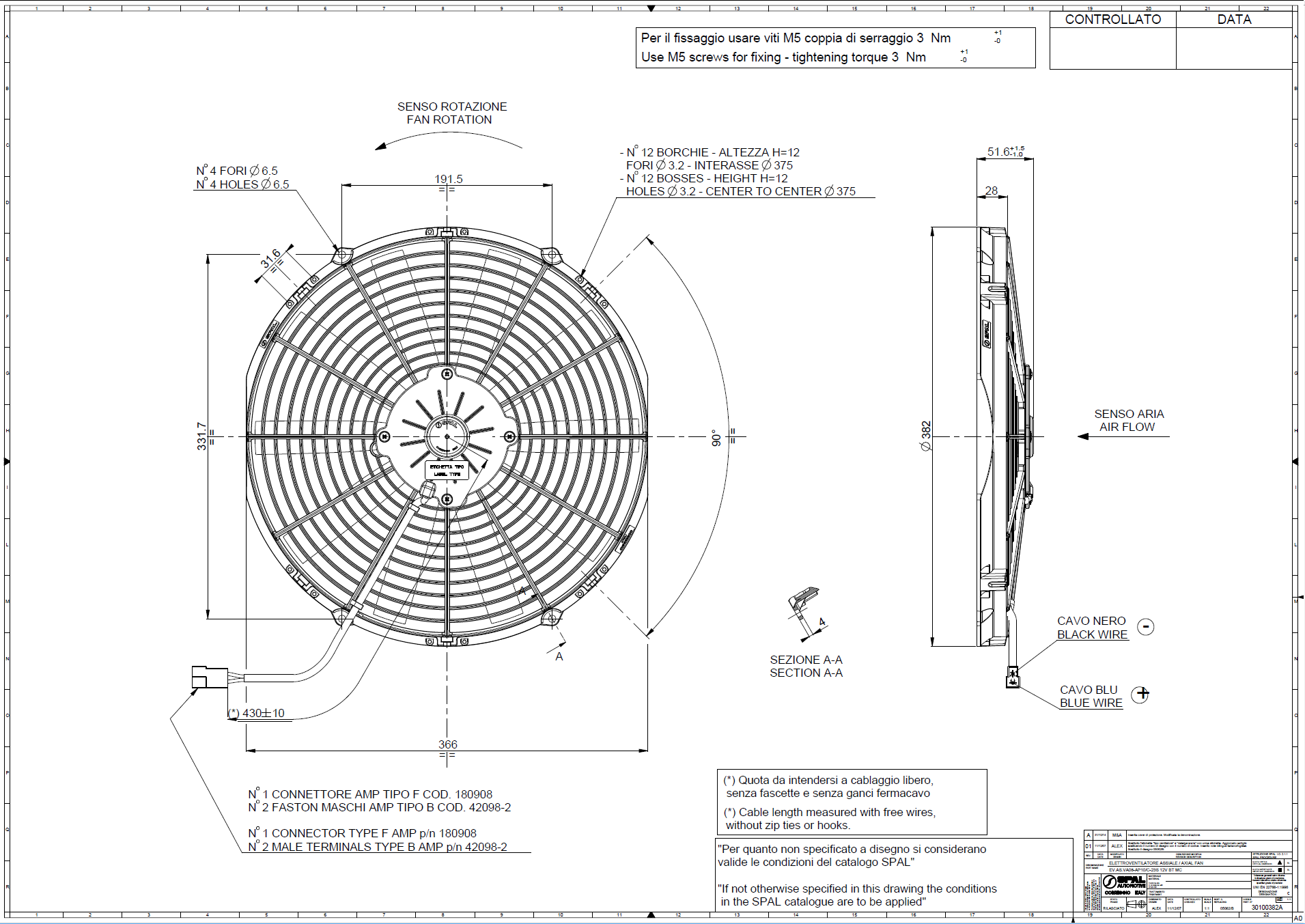

Technical Drawing
Performance Table
