SPAL 301 cfm Single Blower 010-A70-74D 12V CB (12v)

SPAL 301 cfm Single Blower 010-A70-74D 12V CB (12v) SPAL 301 cfm Single Blower 010-A70-74D 12V CB (12v)

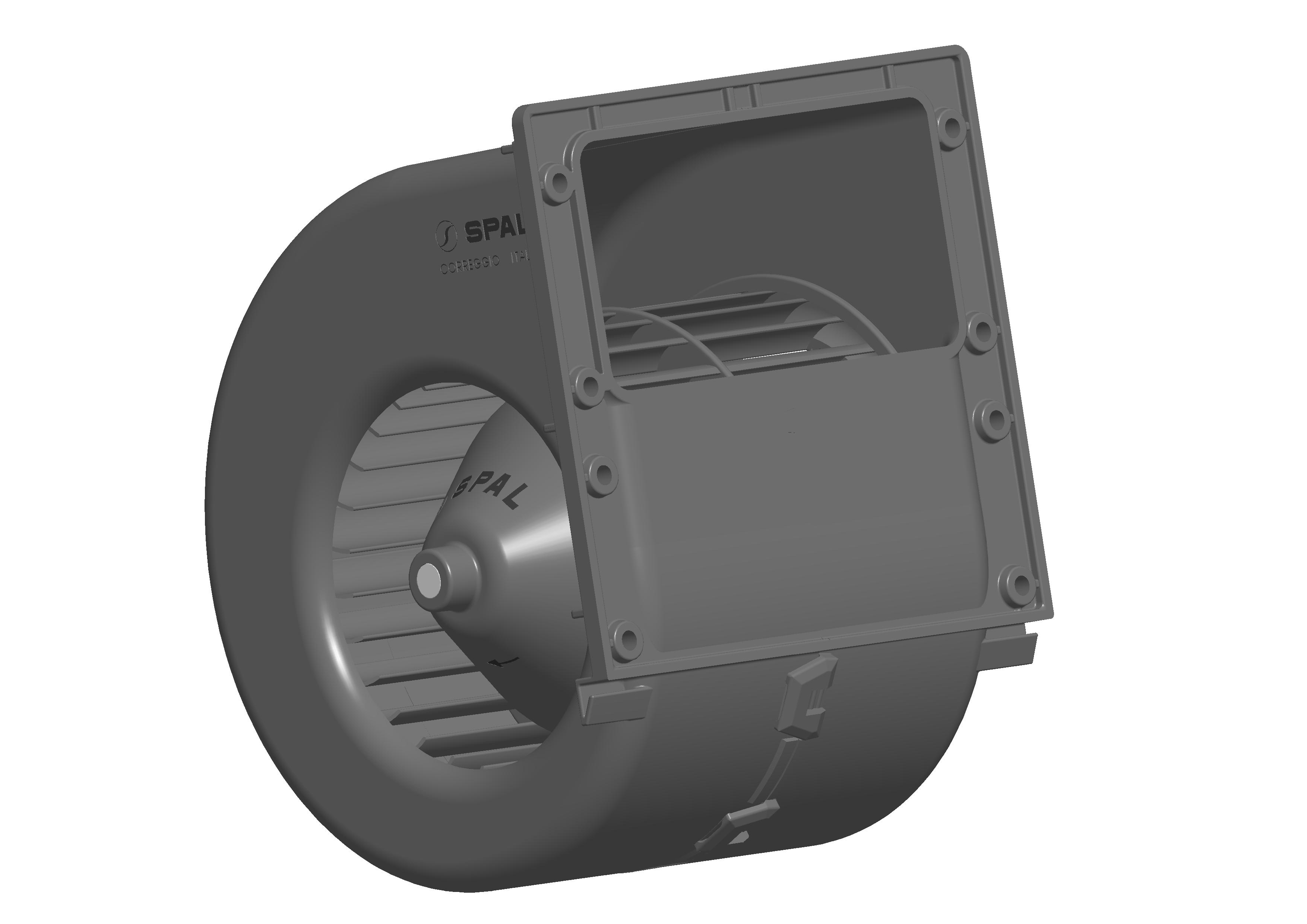

SPAL 301 cfm Single Blower 010-A70-74D 12V CB (12v) - view 1
SPAL 301 cfm Single Blower 010-A70-74D 12V CB (12v) - view 2

Part No. 30003523

  • 12v
  • Single Blower Wheel
  • 301 CFM
  • 19.9A current draw
  • Wire harness with AMP connector supplied

  • View Product Details / Technical Specifications
  • Related items: None
£101.86 GBP each Inc VAT
(Show Ex. VAT)
Weight: 2kg
Add
In stock (for delivery only)
View all 12v Single Blower Motor Assemblies

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 301CFM (510m³/h)
Operating Voltage 12v
SPAL Type/Description 010-A70-74D 12V CB
CB: Wire harness with AMP connector
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001

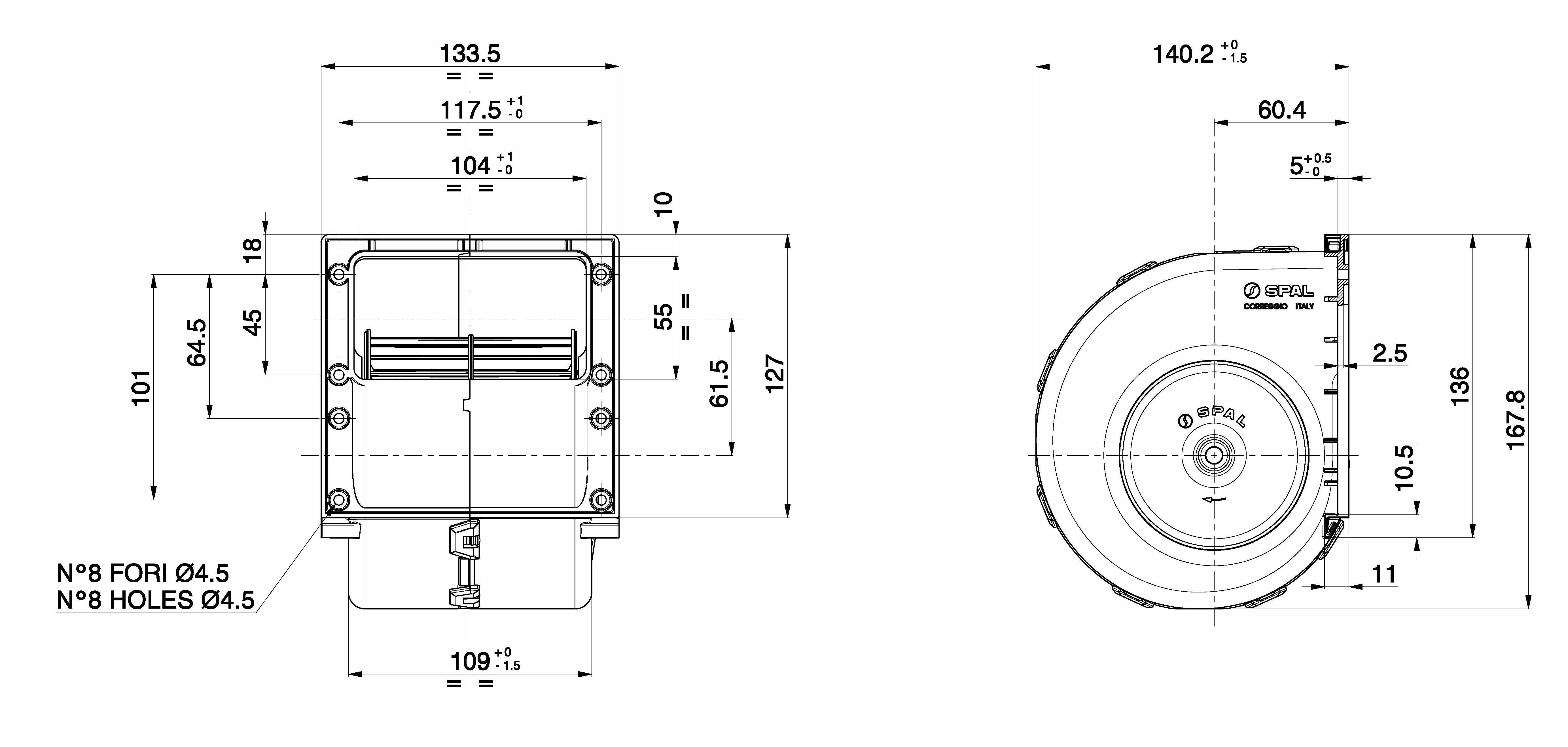

Technical Drawing

Dimensions of SPAL 301 cfm Single Blower 010-A70-74D 12V CB (12v)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
510
19.9
301
0.0
10.0
460
18.5
271
0.4
20.0
420
17.3
248
0.8
30.0
390
16.3
230
1.2
40.0
340
14.4
201
1.6
50.0
280
13.3
165
2.0
60.0
220
11.3
130
2.4
70.0
160
10.3
94
2.8
80.0
90
9.1
53
3.2
90.0
0
8.0
0
3.6
