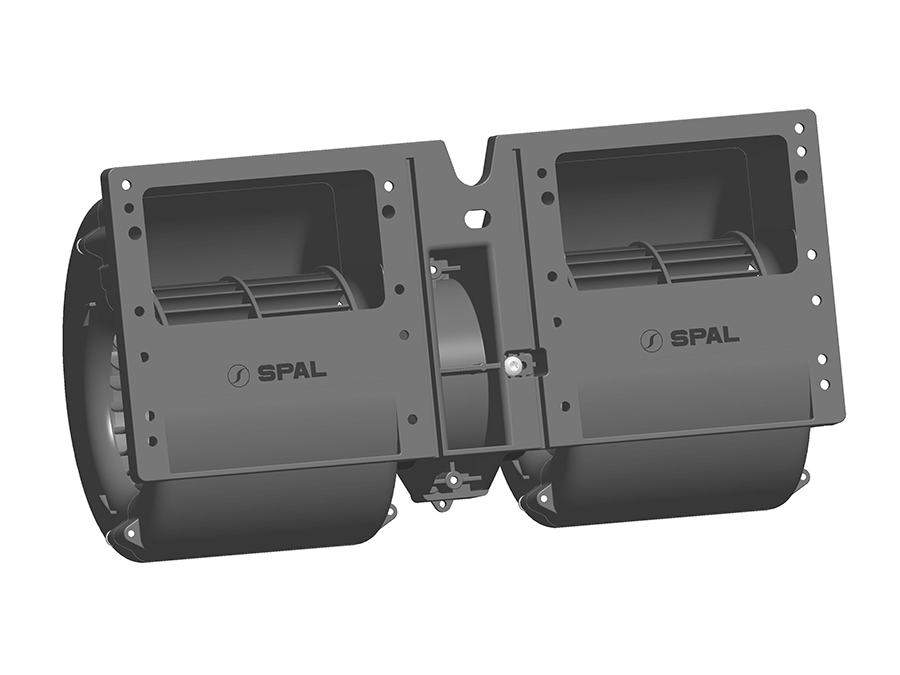

SPAL 511 cfm Double Blower 011-A54/2C/I-22 12V RA(1)3VCV4 SX S.E. CAVO MASSA (12v / 3 Speeds)
Part No. 30004516
- 12v
- Double Blower Wheel
- 511 CFM
- 32.7A current draw
- 3 Speeds
- Special Large Aluminium resistor supplied
- Jumper between electric motor and resistor (NO WIRE HARNESS SUPPLIED)
- Resistor on left side of the blower (seen from behind)
- Super Fan Balancing for smoother, quieter operation
- Grounding cable included
- View Product Details / Technical Specifications
- No application data available / applicable
- Related items: None
Weight:
3.1kg
Shipping costs are not available for this item
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
511CFM (860m³/h) |
| Operating Voltage |
12v |
| SPAL Type/Description |
011-A54/2C/I-22 12V RA(1)3VCV4 SX S.E. CAVO MASSA |
|
RA(1): Special Large Aluminium resistor |
|
3V: 3 speeds |
|
CV: Jumper between electric motor and resistor (without wire harness) |
|
SX: Resistor on left side of the blower (seen from behind) |
|
S.E.: Super Fan Balancing |
|
CAVO MASSA: Includes grounding cable |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |
