Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
1634CFM (2770m³/h) |
| Fan Blade Ø |
305mm (12") |
| Standard Features |
Waterproof motor, IP 68 |
|
ery Low noise |
|
Long life |
|
36 Months Guarantee |
| Operating Voltage |
24v (tested at:26v) |
| IP Rating |
IP68 |
| SPAL Type/Description |
VA51-BP70/VLL-69A W/PACK2 L325 |
|
/VLL: Very long life |
|
W/PACK2: WP Packard Connector (Waterproof) |
| Airflow Direction |
Suction |
| Mounting Bolt/Screw |
M5 bolt |
| Mounting Torque |
3(+1/-0) Nm |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |

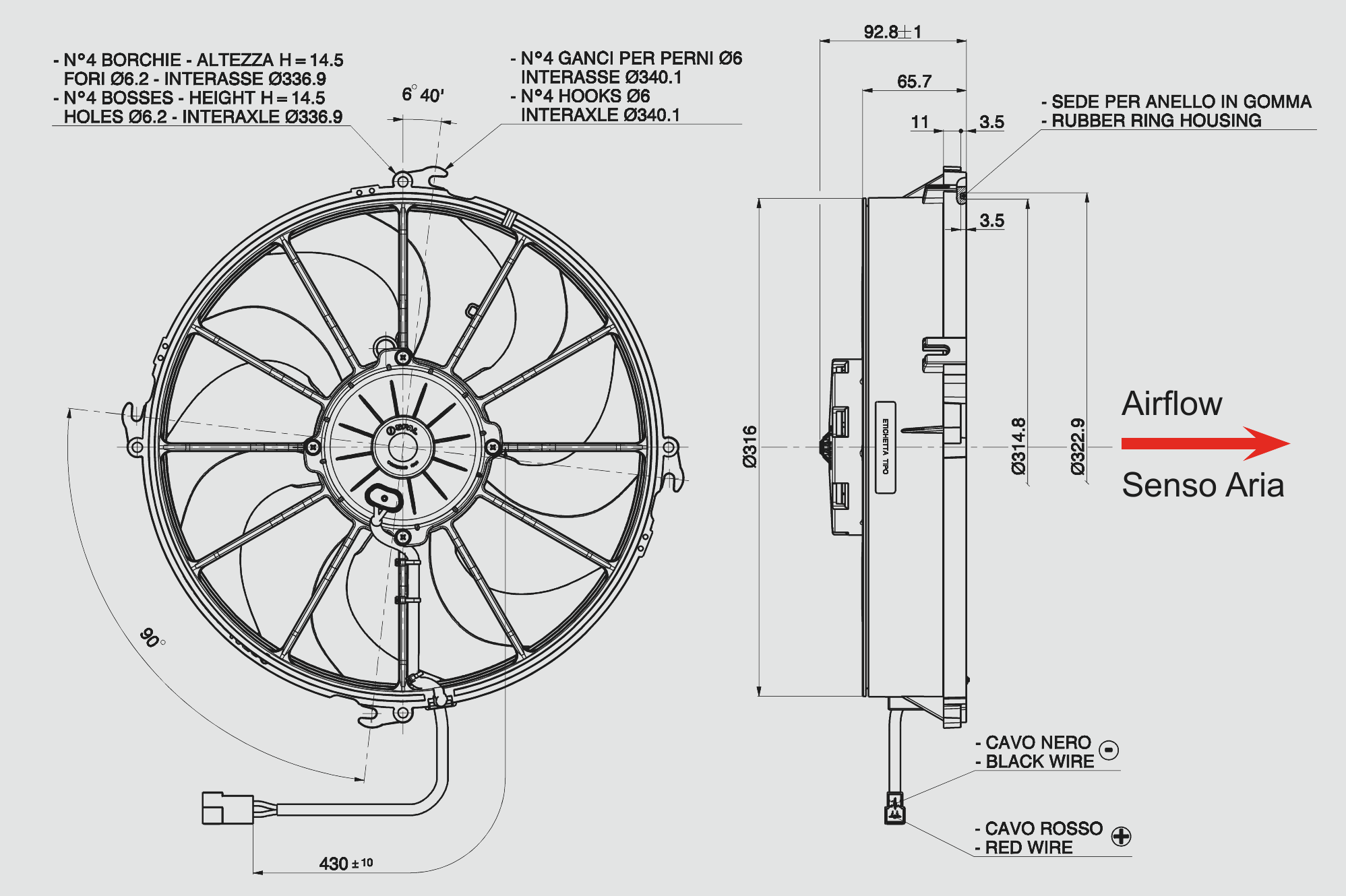

For additional technical details / dimensions please refer to catalogue pages
