SPAL 12" (305mm) Cooling Fan VA51-BP70/LL-69A 24V (24v / 1634 cfm / Pulling)

SPAL 12" (305mm) Cooling Fan VA51-BP70/LL-69A 24V (24v / 1634 cfm / Pulling) SPAL 12" (305mm) Cooling Fan VA51-BP70/LL-69A 24V (24v / 1634 cfm / Pulling)

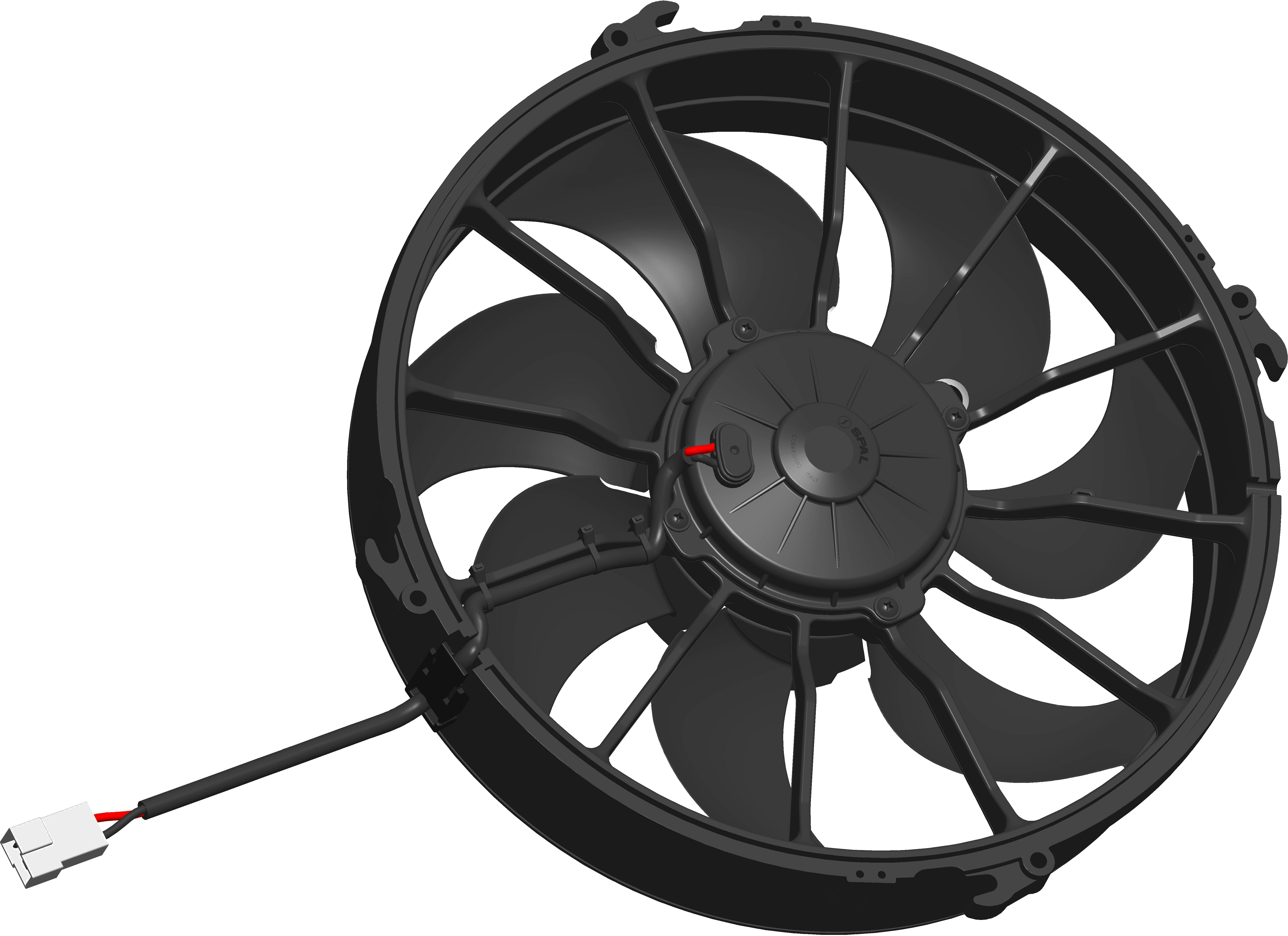

SPAL 12" (305mm) Cooling Fan VA51-BP70/LL-69A 24V (24v / 1634 cfm / Pulling) - view 1
SPAL 12" (305mm) Cooling Fan VA51-BP70/LL-69A 24V (24v / 1634 cfm / Pulling) - view 2

Part No. 30102633

  • SPAL TYPE:VA51-BP70/LL-69A 24V
  • 24v
  • Pulling (suction) for maximum efficency
  • Depth:94mm
  • 1634 CFM
  • 13.2A current draw
  • Long Life

  • View Product Details / Technical Specifications
  • Related items: None
£152.67 GBP each Inc VAT
(Show Ex. VAT)
Weight: 3.6kg
Add
In stock (for delivery only)
View all 12" (305mm) Ø Fans

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 1634CFM (2770m³/h)
Fan Blade Ø 305mm (12")
Operating Voltage 24v
SPAL Type/Description VA51-BP70/LL-69A 24V
LL: Long Life
Airflow Direction Suction (Pulling Fan)
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001

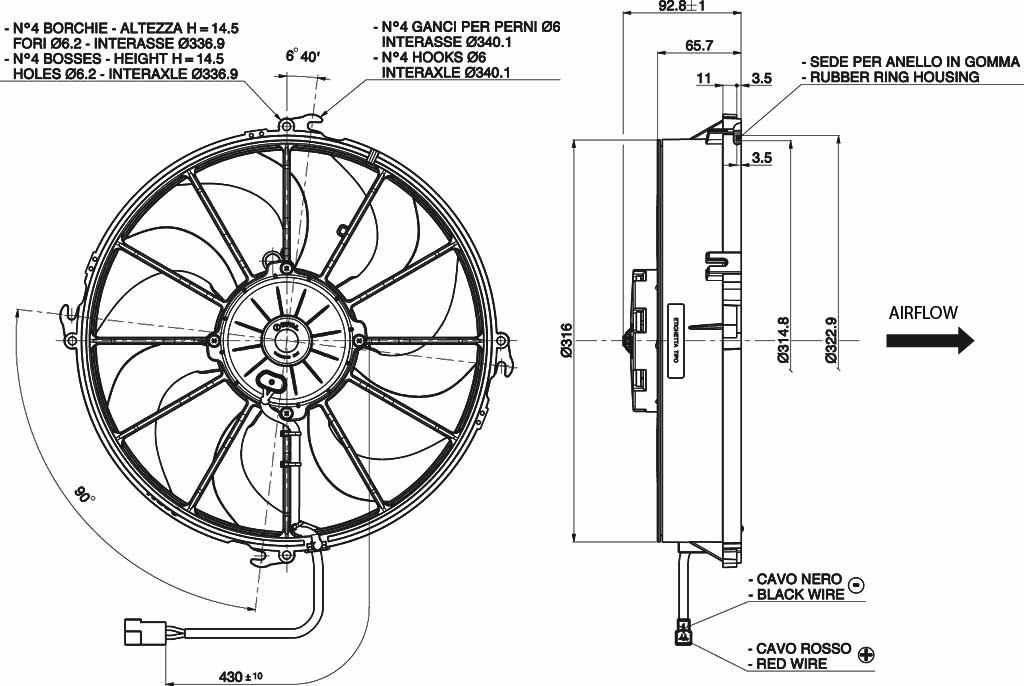

Technical Drawing

Dimensions of SPAL 12" (305mm) Cooling Fan VA51-BP70/LL-69A 24V (24v / 1634 cfm / Pulling)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
2770
7.9
1634
0.0
5.0
2460
8.5
1451
0.2
10.0
2070
8.8
1221
0.4
15.0
1560
9.0
920
0.6
20.0
1040
9.9
614
0.8
25.0
590
10.5
348
1.0
30.0
350
11.6
207
1.2
35.0
130
12.4
77
1.4
40.0
0
13.2
0
1.6
