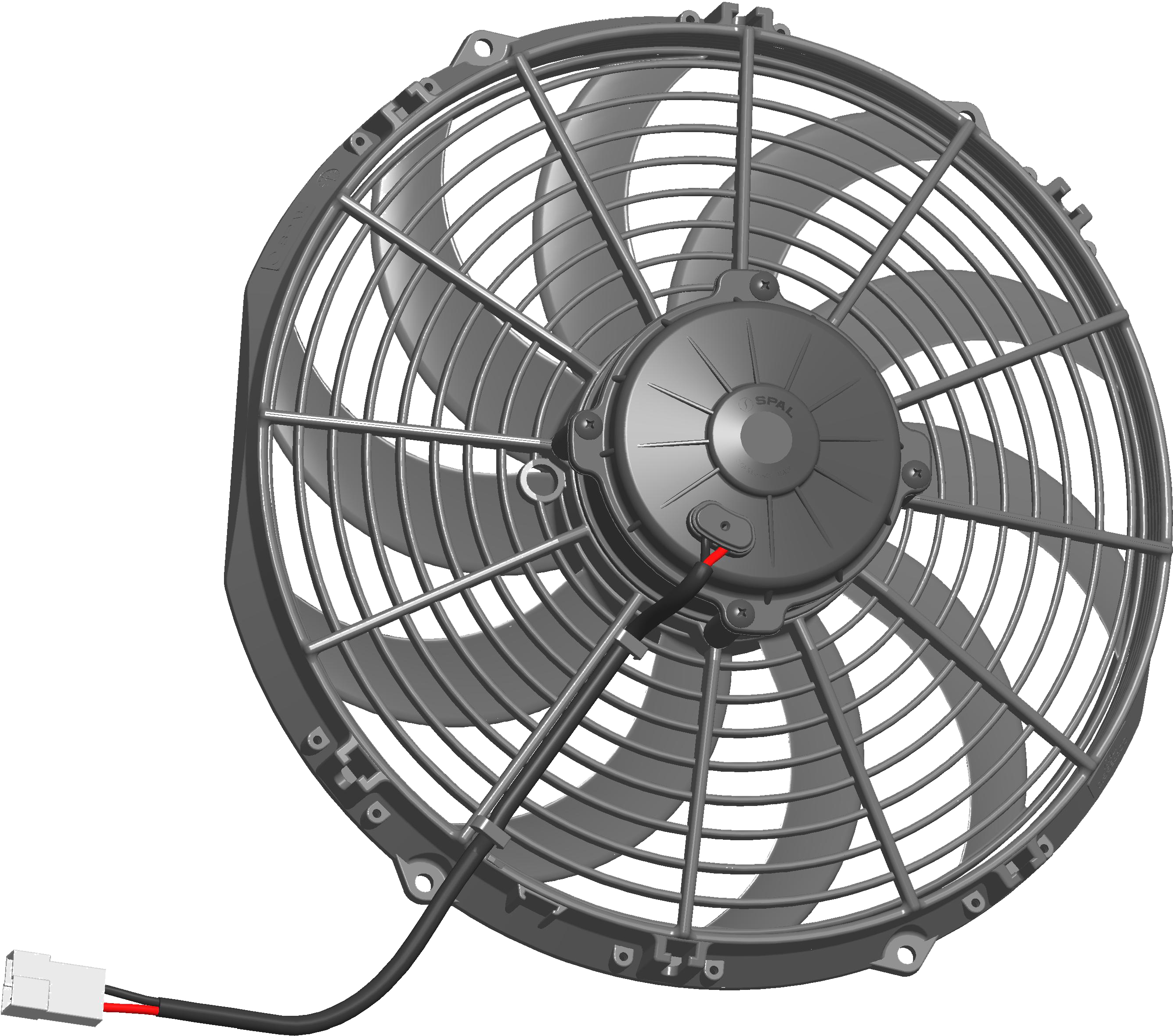

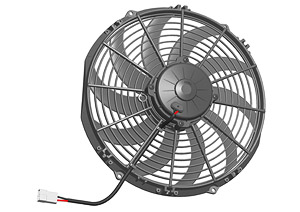

SPAL 12" (305mm) Cooling Fan VA10-BP70/LL-61S 24V BT KS (24v / Pushing)
Part No. 30102552
- SPAL TYPE:VA10-BP70/LL-61S 24V BT KS
- 24v
- Pushing (blowing) ideal for restricted spaces
- Depth:87.5mm
- 1392 CFM
- 6.8A current draw
- Long Life
- Standard Connector with wire harness is included
- Nil Shaft
- View Product Details / Technical Specifications
- No application data available / applicable
- Related items: None
Weight:
3.6kg
Shipping costs are not available for this item
Similar items to this one could be found in
here
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
1392CFM (2360m³/h) |
| Fan Blade Ø |
305mm (12") |
| Operating Voltage |
24v |
| SPAL Type/Description |
VA10-BP70/LL-61S 24V BT KS |
|
LL: Long Life |
|
BT: Standard Connector |
|
KS: Nil Shaft |
|
|
| Airflow Direction |
Blowing (Pushing Fan) |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |
Technical Drawing
Performance Table
