SPAL 12" (305mm) Cooling Fan VA10-BP50/C-61A 24V BT MC (24v / 1392 cfm / Pulling)

SPAL 12" (305mm) Cooling Fan VA10-BP50/C-61A 24V BT MC (24v / 1392 cfm / Pulling) SPAL 12" (305mm) Cooling Fan VA10-BP50/C-61A 24V BT MC (24v / 1392 cfm / Pulling)

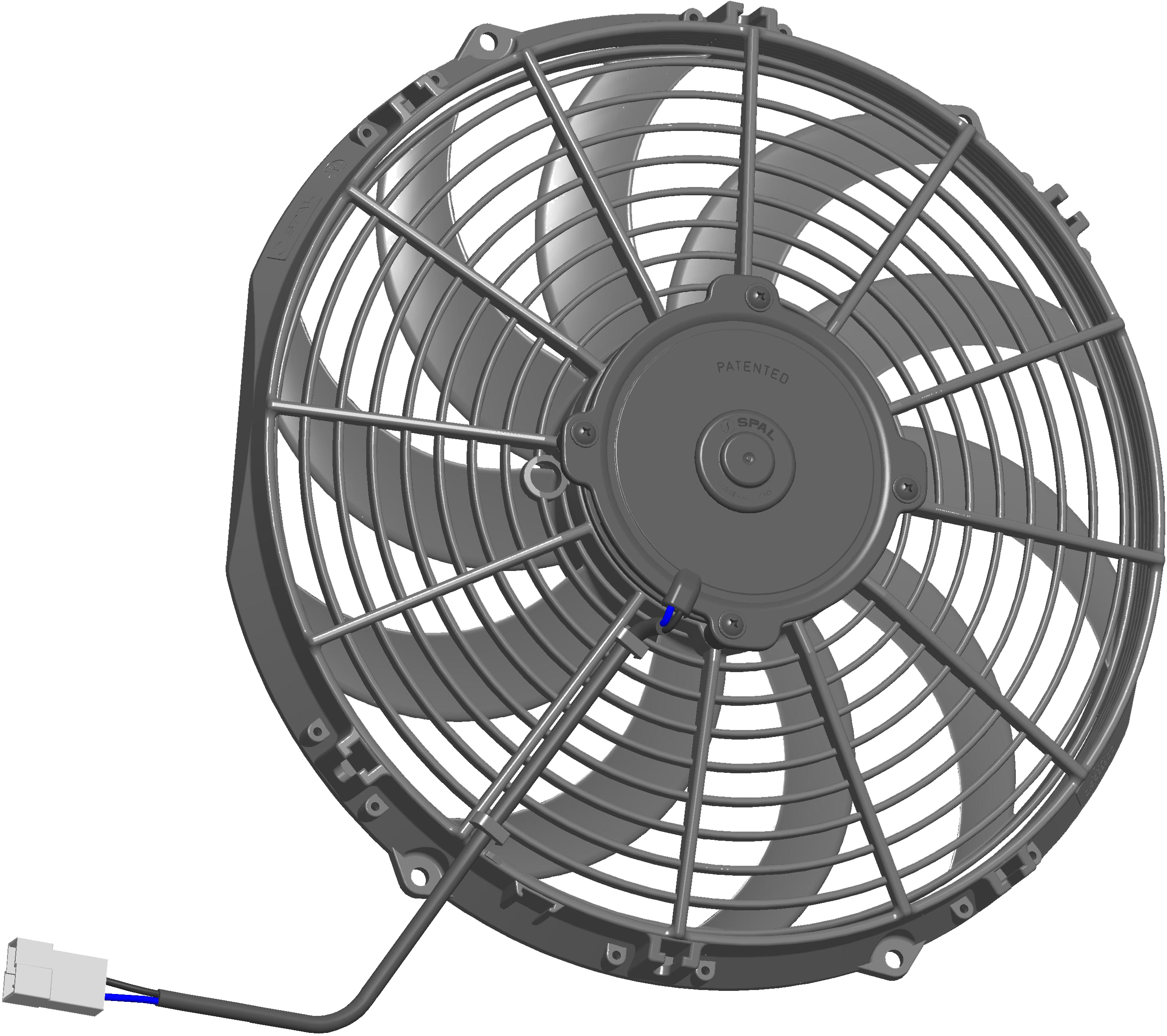

SPAL 12" (305mm) Cooling Fan VA10-BP50/C-61A 24V BT MC (24v / 1392 cfm / Pulling) - view 1
SPAL 12" (305mm) Cooling Fan VA10-BP50/C-61A 24V BT MC (24v / 1392 cfm / Pulling) - view 2

Part No. 30101814

  • SPAL TYPE:VA10-BP50/C-61A 24V BT MC
  • 24v
  • Pulling (suction) for maximum efficency
  • Depth:62.1mm
  • 1345 CFM
  • 7.1A current draw
  • C Class 5000hr motor
  • Standard Connector with wire harness is included
  • Metal Cover

  • View Product Details / Technical Specifications
  • Related items: None
£90.03 GBP each Inc VAT
(Show Ex. VAT)
Weight: 2.3kg
Add
In stock (for delivery only)
More replacement cooling parts like 12" (305mm) Ø Fans products available

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 1392CFM (2360m³/h)
Fan Blade Ø 305mm (12")
Operating Voltage 24v
SPAL Type/Description VA10-BP50/C-61A 24V BT MC
C: C Class 5000hr motor
BT: Standard Connector
MC: Metal Cover
Airflow Direction Suction (Pulling Fan)
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001

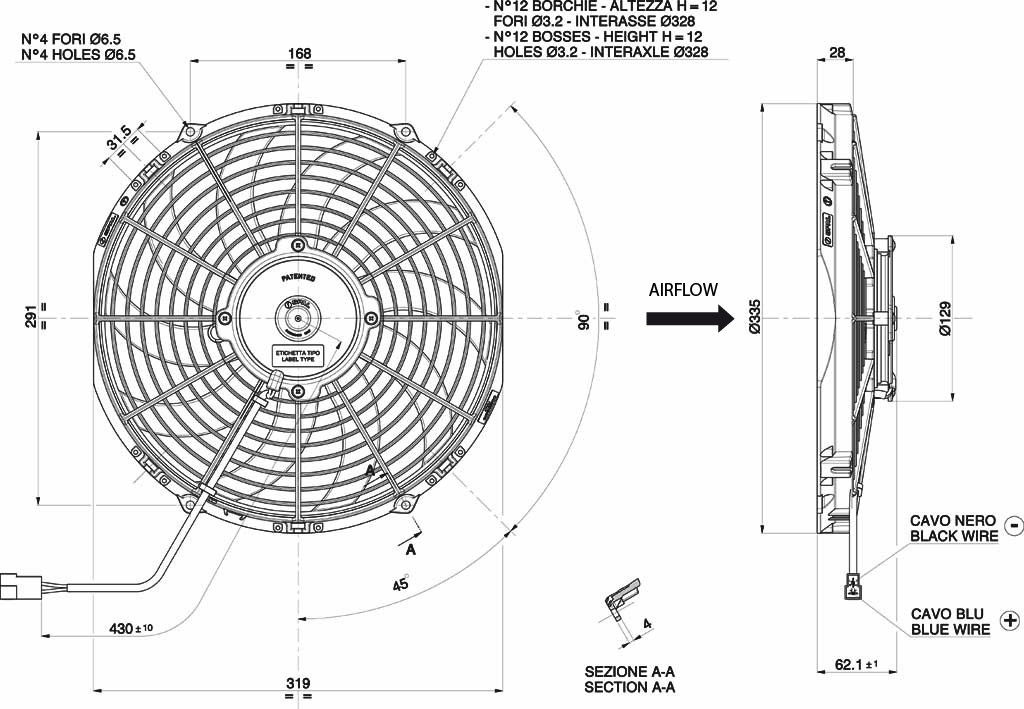

Technical Drawing

Dimensions of SPAL 12" (305mm) Cooling Fan VA10-BP50/C-61A 24V BT MC (24v / 1392 cfm / Pulling)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
2280
6.5
1345
0.0
2.5
2150
6.8
1269
0.1
5.0
2020
6.9
1192
0.2
7.5
1840
7.1
1086
0.3
10.0
1630
7.1
962
0.4
12.5
1370
6.8
808
0.5
15.0
910
6.6
537
0.6
17.5
710
6.5
419
0.7
20.0
600
6.6
354
0.8
25.0
0
6.7
0
1.0
