SPAL 12" (305mm) Cooling Fan VA01-AP90/LL-66A 12V METRI-PACK 630 (12v / 1865 cfm / Pulling)

SPAL 12" (305mm) Cooling Fan VA01-AP90/LL-66A 12V METRI-PACK 630 (12v / 1865 cfm / Pulling) SPAL 12" (305mm) Cooling Fan VA01-AP90/LL-66A 12V METRI-PACK 630 (12v / 1865 cfm / Pulling)

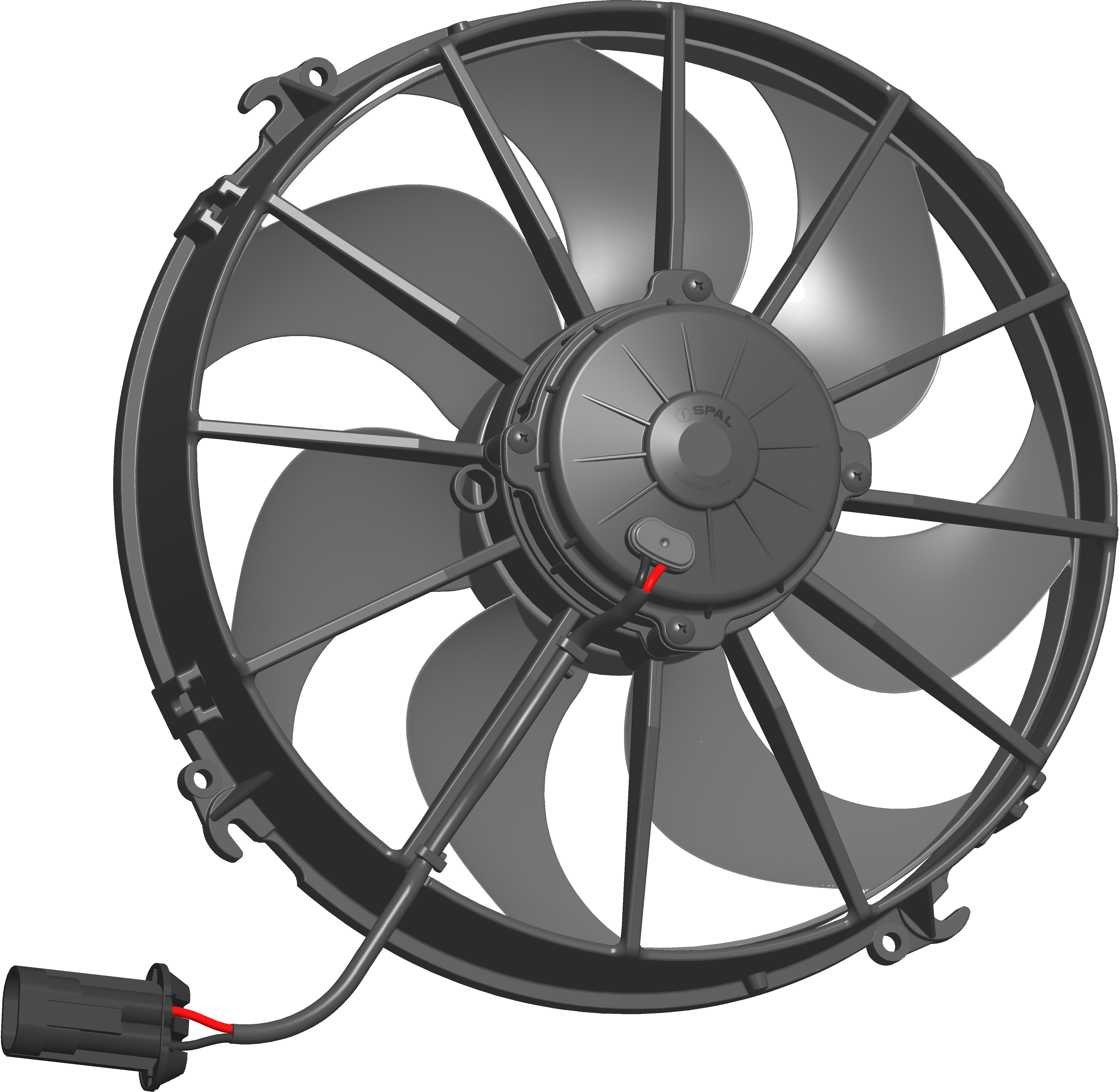

SPAL 12" (305mm) Cooling Fan VA01-AP90/LL-66A 12V METRI-PACK 630 (12v / 1865 cfm / Pulling) - view 1
SPAL 12" (305mm) Cooling Fan VA01-AP90/LL-66A 12V METRI-PACK 630 (12v / 1865 cfm / Pulling) - view 2

Part No. 30102802

  • SPAL TYPE:VA01-AP90/LL-66A 12V METRI-PACK 630
  • 12v
  • Pulling (suction) for maximum efficency
  • Depth:112mm
  • 1865 CFM
  • 25A current draw
  • Long Life

  • View Product Details / Technical Specifications
  • Related items: None
£208.76 GBP each Inc VAT
(Show Ex. VAT)
Weight: 2kg
Add
In stock (for delivery only)
Similar items to this one could be found in here

Technical Information

Part / Product Specification and Notes

Maximum Airflow (at zero Static Pressure) 1865CFM (3170m³/h)
Fan Blade Ø 305mm (12")
Operating Voltage 12v
SPAL Type/Description VA01-AP90/LL-66A 12V METRI-PACK 630
LL: Long Life
Airflow Direction Suction (Pulling Fan)
Certifications UNI EN ISO 9001:2008
ISO TS 16949
ISO 14001

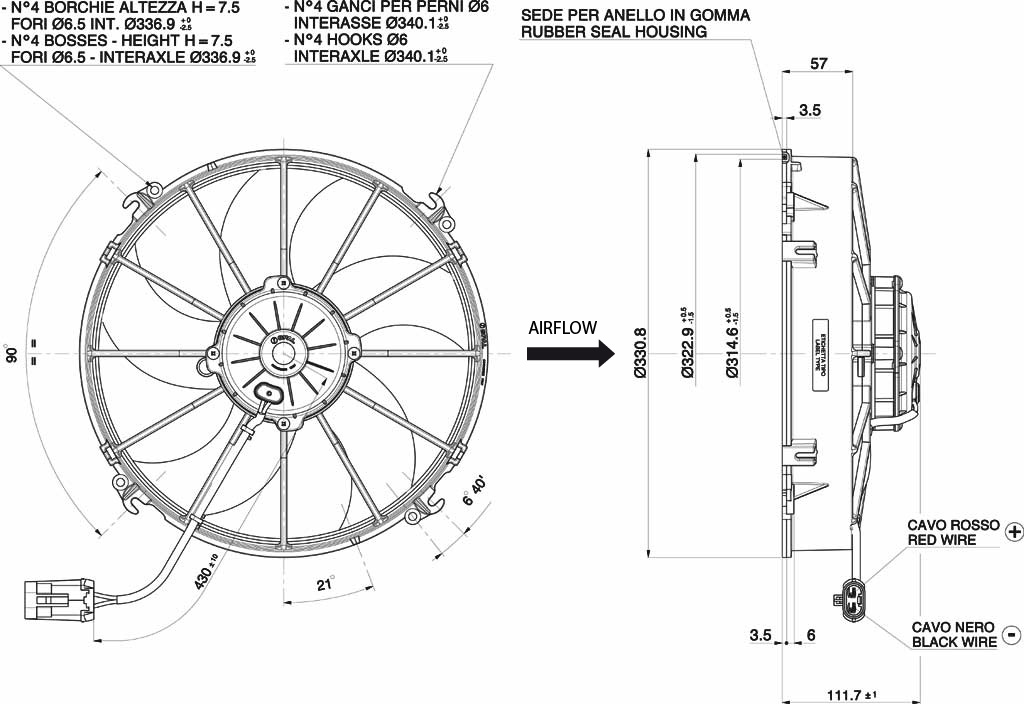

Technical Drawing

Dimensions of SPAL 12" (305mm) Cooling Fan VA01-AP90/LL-66A 12V METRI-PACK 630 (12v / 1865 cfm / Pulling)

Performance Table

Static Pressure
mm H2O
 Airflow
m3/h
 Current Input
A
 Airflow
CFM
 Static Pressure
in H2O
0.0
3170
25.0
1870
0.0
5.0
2870
27.1
1693
0.2
10.0
2640
28.9
1558
0.4
15.0
2380
29.7
1404
0.6
20.0
2140
30.8
1263
0.8
25.0
1730
31.0
1021
1.0
30.0
1040
32.2
614
1.2
35.0
760
34.0
448
1.4
40.0
510
36.1
301
1.6
45.0
330
36.6
195
1.8
50.0
150
38.9
89
2.0
55.0
0
38.6
0
2.2
