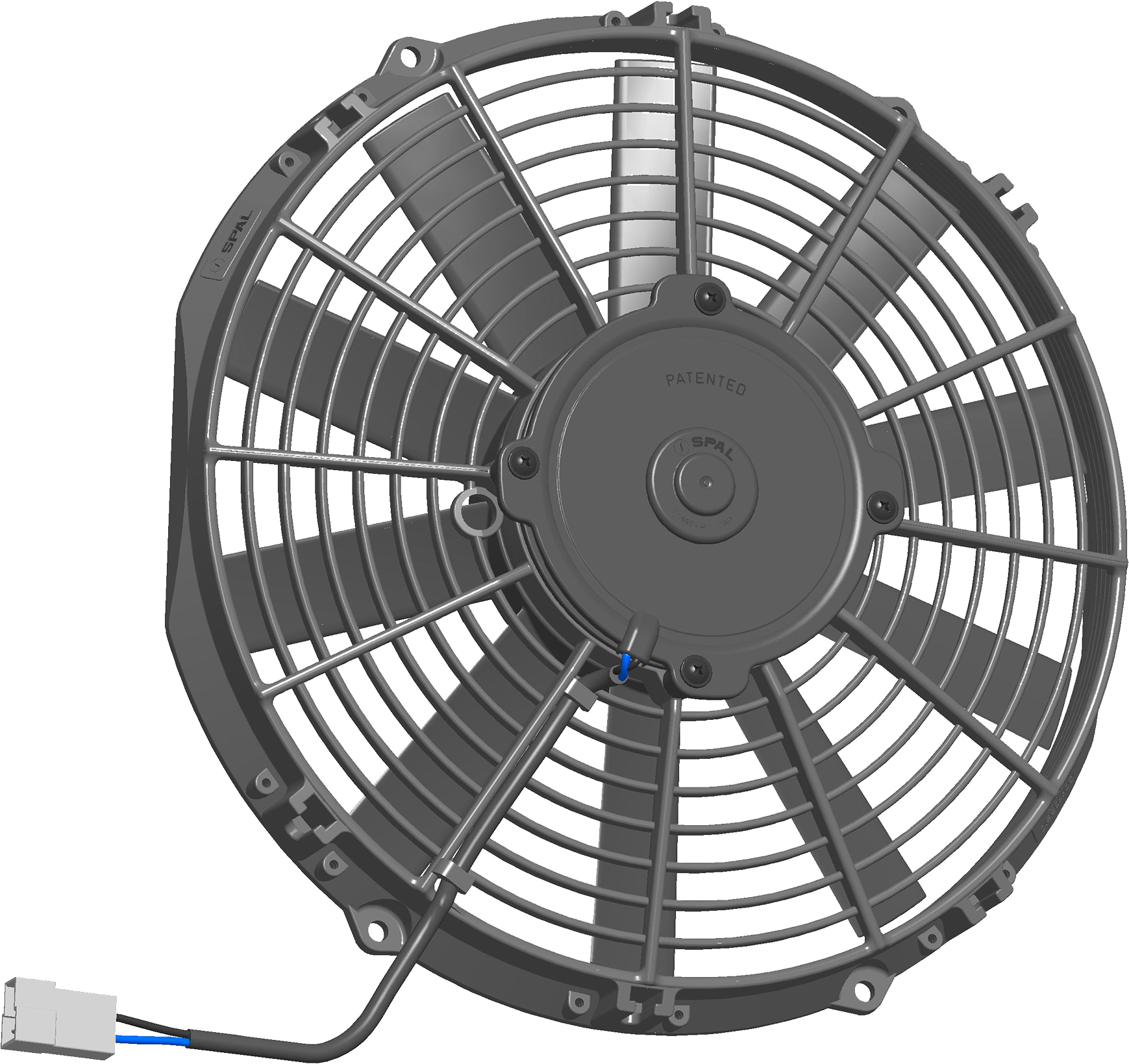

SPAL 11" (280mm) Cooling Fan VA09-AP12/C-27A 12V BT MC (12v / 820 cfm / Pulling)
Part No. 30100388
- SPAL TYPE:VA09-AP12/C-27A 12V BT MC
- 12v
- Pulling (suction) for maximum efficency
- Depth:51.1mm
- 820 CFM
- 8.1A current draw
- C Class 5000hr motor
- Standard Connector with wire harness is included
- Metal Cover
- View Product Details / Technical Specifications
- No application data available / applicable
- Related items: None
Weight:
1.7kg
Shipping costs are not available for this item
Have you see our entire range of
11" (280mm) Ø Fans yet?
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
820CFM (1390m³/h) |
| Fan Blade Ø |
280mm (11") |
| Operating Voltage |
12v |
| SPAL Type/Description |
VA09-AP12/C-27A 12V BT MC |
|
C: C Class 5000hr motor |
|
BT: Standard Connector |
|
MC: Metal Cover |
|
|
| Airflow Direction |
Suction (Pulling Fan) |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |
Technical Drawing
Performance Table
Products described as suitable for original manufacturers on this site are SPAL branded replacement parts and are not manufactured by the Original Equipment Manufacturer (OEM). Original Manufacturer’s names, part numbers and descriptions are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OEM. All SPAL products sold on this website are genuine SPAL Automotive products manufactured in Italy.
