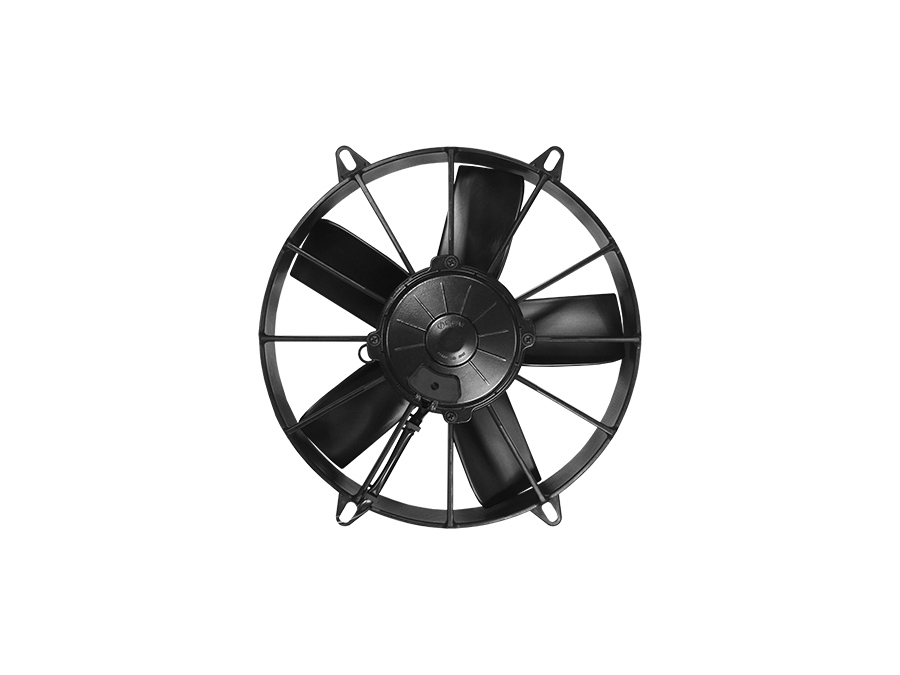

SPAL 11" (280mm) Cooling Fan VA03-AP70/LL-37A (12v / 1375 cfm / Pulling)
Part No. 30102054A
Genuine high performance paddle blade suction condenser/radiator cooling fan from SPAL Automotive.
- SPAL TYPE:VA03-AP70/LL-37A BT
- 12v
- Pulling (suction) for maximum efficency
- Depth: 96mm
- 1375 CFM
- 18.4A current draw
- Paddle blades to give maximum airflow
- Long Life Motor fitted for additional durability
- Standard Connector with wire harness is included
- View Product Details / Technical Specifications
- No application data available / applicable
- View Related Items
Weight:
3.396kg
Shipping costs are not available for this item
See product category
11" (280mm) Ø Fans for more
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
1375CFM (2330m³/h) |
| Fan Blade Ø |
280mm (11") |
| Standard Features |
Waterproof motor, IP 68 |
|
Long life |
|
36 Months Guarantee |
| Operating Voltage |
12v (tested at:13v) |
| IP Rating |
IP68 |
| SPAL Type/Description |
VA03-AP70/LL-37A BT |
|
/LL: Long life |
|
BT: Standard Connector |
| Airflow Direction |
Suction |
| Mounting Bolt/Screw |
M8 bolt |
| Mounting Torque |
3(+1/-0) Nm |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |
For additional technical details / dimensions please refer to catalogue pages

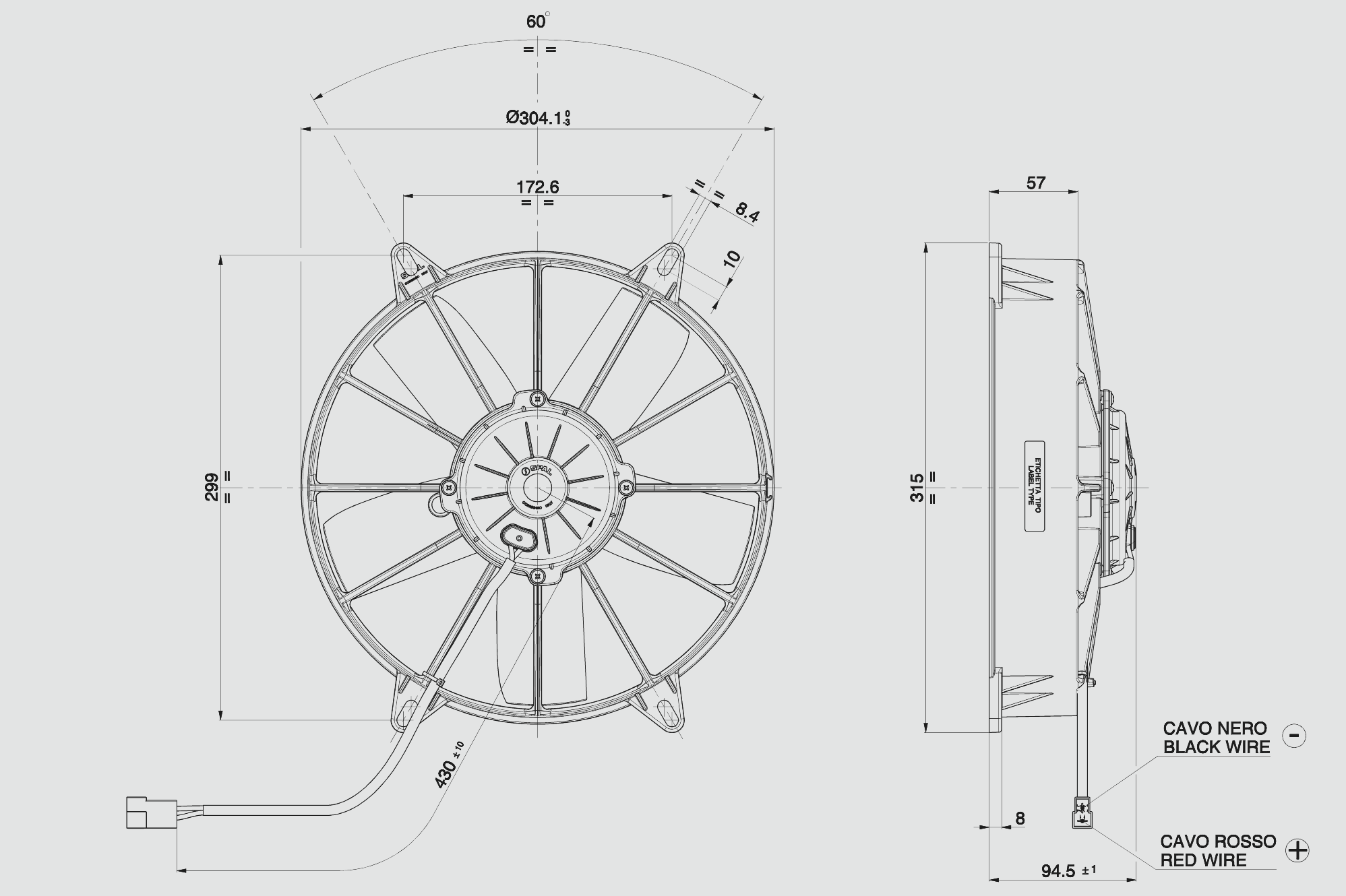

Technical Drawing
Performance Table
| SPAL Axial Fans 12v - 24v DC |
Catalogue-FA10
|
