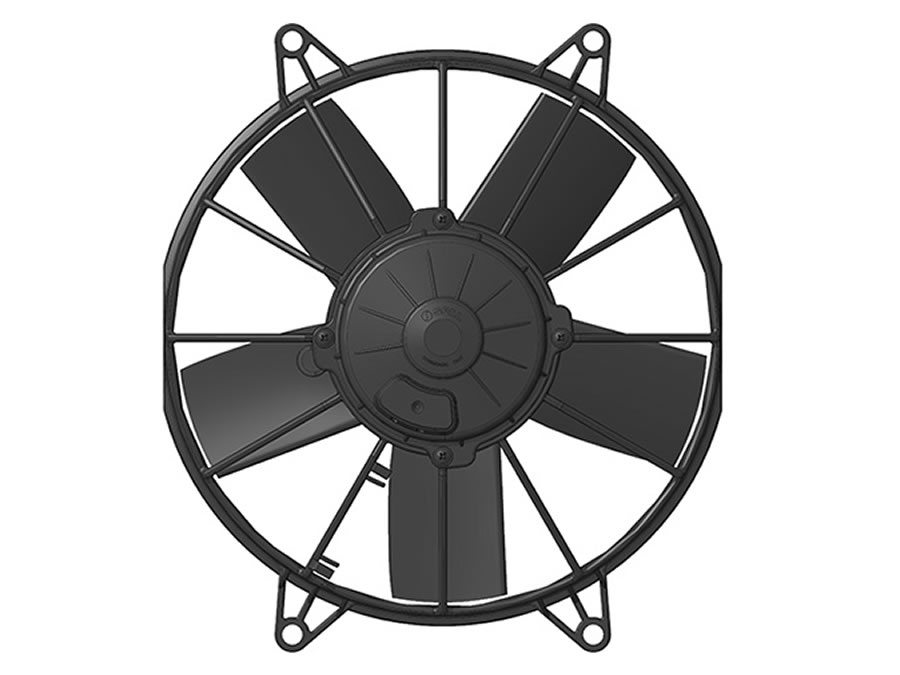

SPAL 10" (255mm) Cooling Fan VA15-AP70/LL-39A 12V BT KS (12v / 1103 cfm / Pulling)
Part No. 30102057
- SPAL TYPE:VA15-AP70/LL-39A 12V BT KS
- 12v
- Pulling (suction) for maximum efficency
- Depth:95.4mm
- 1103 CFM
- 15.4A current draw
- Long Life
- Standard Connector with wire harness is included
- Nil Shaft
- View Product Details / Technical Specifications
- No application data available / applicable
- Related items: None
Weight:
1.6kg
Shipping costs are not available for this item
Part / Product Specification and Notes
| Maximum Airflow (at zero Static Pressure) |
1103CFM (1870m³/h) |
| Fan Blade Ø |
255mm (10") |
| Operating Voltage |
12v |
| SPAL Type/Description |
VA15-AP70/LL-39A 12V BT KS |
|
LL: Long Life |
|
BT: Standard Connector |
|
KS: Nil Shaft |
|
|
| Airflow Direction |
Suction (Pulling Fan) |
| Certifications |
UNI EN ISO 9001:2008 |
|
ISO TS 16949 |
|
ISO 14001 |
Performance Table
Products described as suitable for original manufacturers on this site are SPAL branded replacement parts and are not manufactured by the Original Equipment Manufacturer (OEM). Original Manufacturer’s names, part numbers and descriptions are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OEM. All SPAL products sold on this website are genuine SPAL Automotive products manufactured in Italy.
